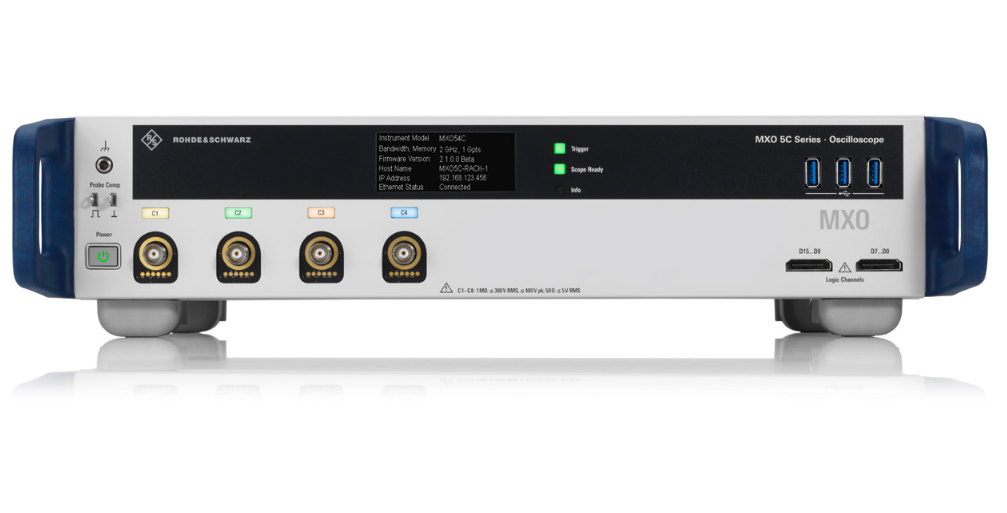

Key specifications
Channels: 4
Bandwidth: 350 MHz, 500 MHz, 1 GHz, 2 GHz
Maximum sample rate: 5 Gsample/s (on 4 channels)
Record length: 500 Mpoints; 1 Gpoints (optional)
Vertical resolution: 12-bit ADC (up to 18 bit with HD mode)
Acquisition rate: > 4.5 million waveforms/s (on 4 channels); 17000 FFT/s (on 4 channels)
Hardware options: MSO (16 logic channels); 100 MHz generator (dual Arb)
Operating system: Linux
Web browser: intuitive user interface with MXO 5 front panel
General data
Rackmount height: 2 HU
Display: external via DisplayPort or HDMI™
Touch display: on external display that supports touch via USB
Front panel: virtual with web browser, e-ink display for status and connectivity info
Passive probes: optional
