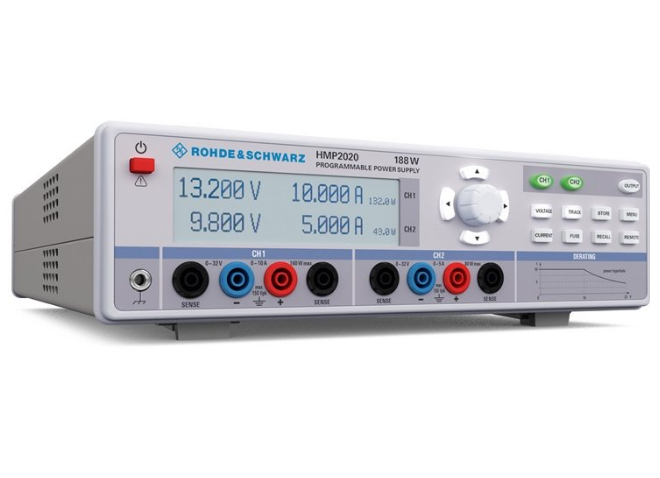

Rohde&Schwarz HMP2020 Power Supply (188W,2channels)

Number of output channels: 2

Output voltage/CH: 0 V to 32 V

Output current/CH: 10 A (CH1), 5A (CH2)

Total output power: 188 W

Max voltage in series : 64V

Max current in parallel: 15 A

Setting resolution: 1mV và <1A: 0.2 mA; ≥1A: 1mA

Voltage Ripple(3Hz ~ 20Mhz) : < 1.5 mV (RMS), < 1 mA (RMS)

Load regulation : < 0.01 % + 2 mV, < 0.01 % + 250 μA

Line regulation : < 0.01 % + 2 mV, < 0.01 % + 250 μA

Setting accuracy: < 0.05 % + 5 mV, < 0.1 % + 5 mA

Display : LCD

Communication : LAN/USB và GPIB (Optional)

Power supply : 115 V/230 V (±10 %); 50/60Hz

Dimension : 285mm × 95mm × 405mm, 7.8kg

Scope of Delivery: Power Cable, Manual
