Direct access to our certified experts

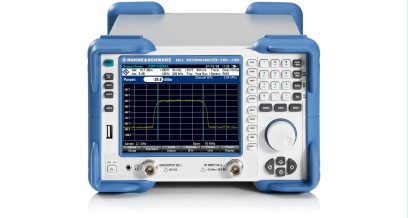

Manufacturer: Rohde&Schwarz
Model: FSC6
Order No : 1314.3006.06
Warranty : 12 months
Frequency range: 9 kHz to 6 GHz
Preamplifier: optional
Resolution bandwidth: 10 Hz to 3 MHz
Phase noise : –95 dBc (1 Hz), typ. –105 dBc (1 Hz)
Span range: 0Hz, 10Hz ~ 3Ghz
DANL : < –155 dBm, typ. –159 dBm
TOI: > +3 dBm, typ. +10 dBm
Aging per year: 1 × 10–6
Sweep time: 200us ~ 100s @ span = 0
Phase noise
30 kHz up to –95 dBc (1 Hz)
100 kHz up to –100 dBc (1 Hz)
1 MHz up to –120 dBc (1 Hz)
Display Range: DANL ~ +30dBm
Max input amplitude: 50V/33dBm
TG Generator (Optional)
+ Frequency Range: 100Khz ~ 6Ghz
+ Output level: 0 dBm
Resistance: 50 Ω
Display: 5.7" (14.5 cm) color LCD with VGA resolution
Dimensions(W x H x D): 233 mm × 158 mm × 350 mm (9.2 in × 6.2 in × 13.8 in)
Weight: 4.5 kg (9.92 lbs)
Accessories: Power cable, USB cable, manual
