- Color yellow
- Resolution: 0.02° (± 0.349 mm / m + 1%)
- Accuracy:
0 to 20 °: ± 0.15° + 1% (± 2.617 mm / m + 1%)
20 to 70 °: ± 0.2° (± 3.49 mm / m)
70 to 90 °: ± 0.15° + 1% (± 2.617 mm / m + 1%)
- Measuring range:
Single axis: 360°, 2-axis: ± 40°
- Response time: <0.4 seconds
- Zero angle offset drift per °C: 0.0058 ° (typical)
- Audio sound: 60 dB at a distance of 30 cm with adjustable angle
- Operating temperature: 0 to 50 °C
- Storage temperature: -10 to 60 °C
- User interface: mono color LCD with backlight
- Power supply: rechargeable Li-Polymer 3.7 V battery
- Charging port: 5V 500 mA Mini Type B USB port
- Power consumption: standby: 10 µA, operation: 20 mA
- Battery life: standby 2000 hours, operation 40 hours
- Magnets: bottom side and back
- Dimensions (L x W x H): 66 x 64 x 29 mm
- Weight: 118.3 g
Package list:

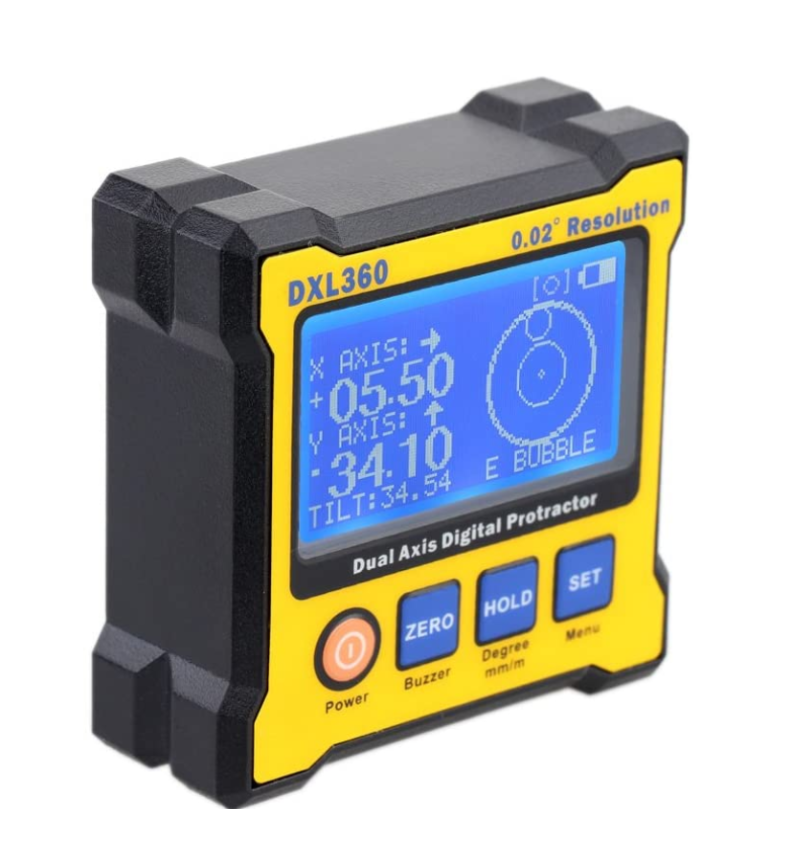

1 x digital protractor DXL360
1 x power supply
1 x USB Type B connection cable
1 x user manual
