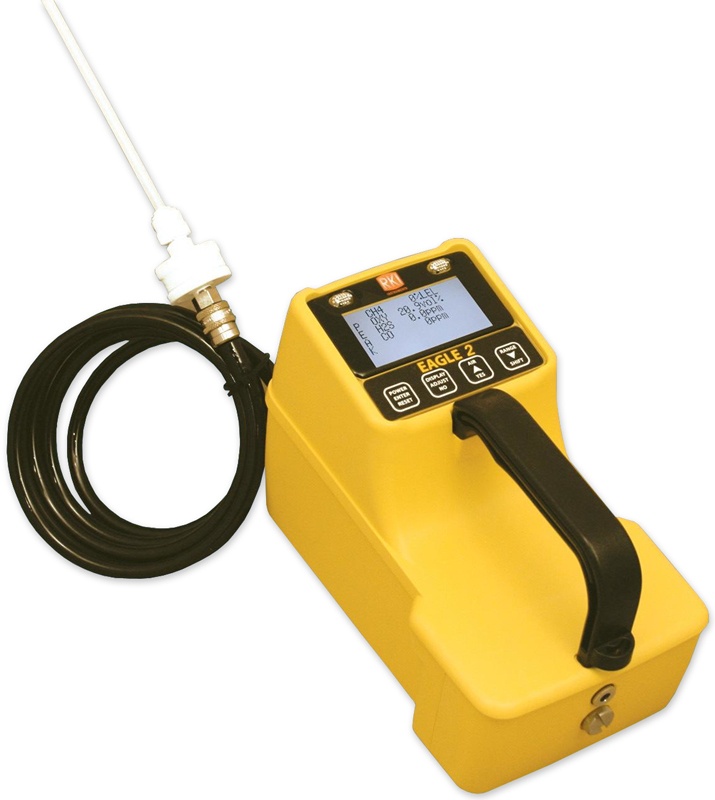

RKI Eagle 2 gas monitor (CH4, O2, CO, H2S, NH3, AsH3, Cl2, HCN, PH3, SO2, CO2, VOC, H2)

Enclosure : Weatherproof, chemical resistant, RFI / EMI coated high impact polycarbonate-PBT blend. Can operate in 2.0” of water without leakage. Ergonomically balanced with rugged top mounted handle. Water & dust resistant equivalent to IP64.
Dimensions: 9.5” L x 5.25” W x 5.875” H
Weight: 3.8 Lbs (standard 4 gas with batteries)
Detection Principle: Catalytic combustion, electrochemical cell, galvanic cell, infrared,
photo ionization detector, and thermal conductivity.
Sensor Life: 2 Years under normal conditions.
Sampling Method: Powerful, long-life pump (over 6,000 hours) can draw samples over 125 feet. Flow rate approximately 2.0 SCFH
Display: 3 display modes: display all gases, large font-autoscroll, or large font-manual scroll. Polyurethane protected overlay. Backlight, illuminates for alarms and by demand with adjustable time.
Language: Readout can display in 5 languages (English, French, German, Italian, or Spanish.
Alarms: 2 Alarms per channel plus TWA and STEL alarms for toxics. The two alarms are fully adjustable for levels, latching or self reset, and silenceable.
Alarm Method: Buzzer 95 dB at 30 cm, four high intensityLED’s.
Controls: 4 External glove friendly push buttons for operation, demand zero, and autocalibration. Buttons also access LEL/ppm, alarm silence, peak hold, TWA/STEL values, battery status, conversion factors, and many other features.
Continuous Operation: At 70°F, 16 hours using alkaline batteries, or 18 hours using Ni-MH.
Power Source: 4 Alkaline or Ni-MH, size C batteries (Charger has alkaline recognition to prevent battery damage if charging is attempted with alkalines).
Operating Temp. & Humidity: -20°C to 50°C (-4°F to 122°F), 0 to 95% RH, non-condensing.
Response Time: 30 Seconds to 90% (for most gases) using standard 5 ft hose.
Safety Rating: Intrinsically Safe, Class I. Groups A, B, C, D.Approvals: CSA / CE
Standard Accessories: Shoulder strap, alkaline batteries, hydrophobic probe, and 5 foot hose, internal hydrophobic filter
Optional Accessories :
Dilution fitting (50/50)
+ Ni-MH batteries
+ Battery charger, 115 VAC, 220 VAC, or 12 VDC (charge time 4 hours) with continuous operation function
+ Extension hosesStandard Confined Space Gases:
Hydrocarbons (CH4, std): 0 - 100% LEL (Option)
Hydrocarbons (CH4, std): 0 - 5% Vol. (CH4) (Option)
Hydrocarbons (CH4, std): 0 - 50,000 ppm (Option)
Oxygen (O2): 0 - 40% Vol. (Option)
Carbon Monoxide (CO): 0 - 500 ppm (Option)
Hydrogen Sulfid(H2S): 0 - 100 ppm (Option)

Toxics: (Option)
Ammonia (NH3): 0 - 75 ppm (Option)
Arsine (AsH3): 0 - 1.5 ppm (Option)
Chlorine (Cl2): 0 - 3 ppm (Option)
Hydrogen Cyanide (HCN): 0 - 15 ppm (Option)
Phosphine (PH3): 0 - 1 ppm (Option)
Sulfur Dioxide (SO2): 0 - 6 ppm (Option)

IR Sensors;
Carbon Dioxide (CO2): 0 - 10,000 ppm (Option)
Carbon Dioxide (CO2): 0 - 5% Vol. (Option)
Carbon Dioxide (CO2): 0 - 60% Vol. (Option)
Methane (CH4): 0 - 100% LEL/ (Option)
Methane (CH4): 0 - 100% Vol. (Option)
Methane (CH4): Hydrocarbons (Option)
Methane (CH4): 0 - 100% LEL/ (Option)
Methane (CH4): 0 - 30% Vol. (Option)

PID Sensors:
VOC: 0 - 2,000 ppm (Option)
VOC: 0 - 50 ppm (Option)
TC Sensors
Methane (CH4): 0 - 100% Vol. (Option)
Hydrogen (H2): 0 - 10% Vol. (Option)
Hydrogen (H2): 0 - 100% Vol. (Option)
