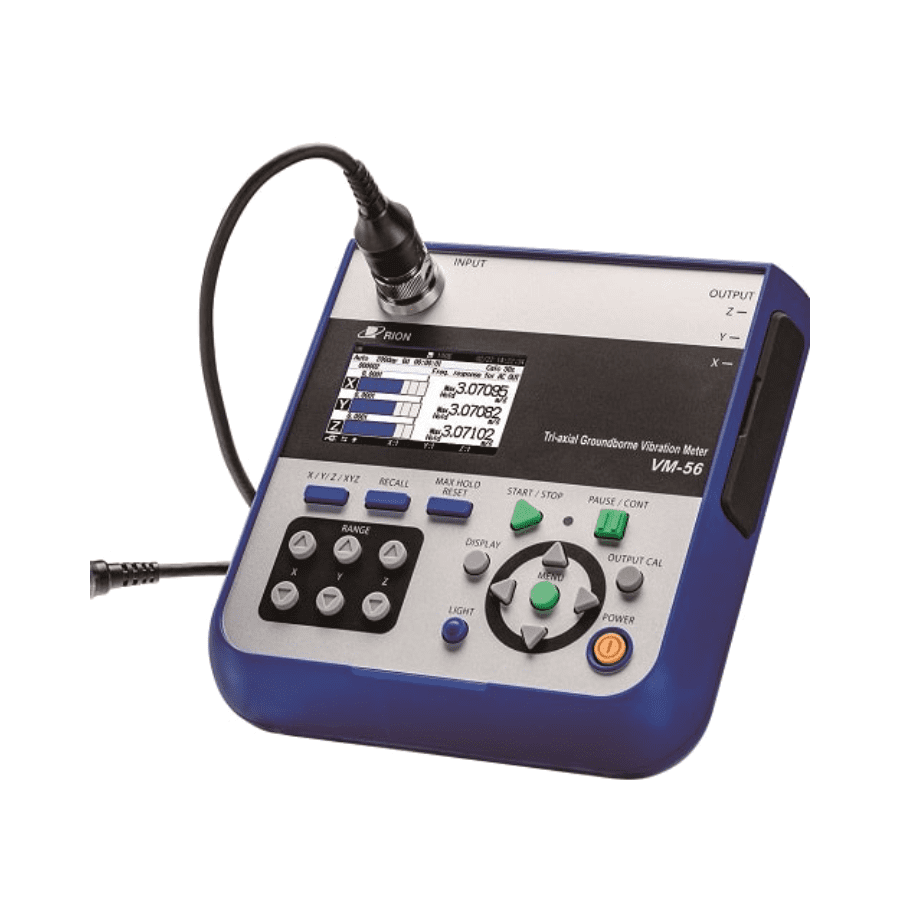

RION VM-56 Vibration Meters (0.5 Hz ~ 5 kHZ)

Measurement parameter: Acceleration (m/s2)

Measurement range: Depends on the type of accelerometer used

Frequency measurement range: 0.5 Hz to 5 kHz; 1 Hz to 80 Hz (with PV-83C sensor)

Display: LCD segment

Output port: BNC connector × 3 for X, Y, Z (AC output)

Power supply: IEC R14 (size "C") batteries × 4 or AC adapter (optional)

Operating conditions: -10 to +50ºC, max. 90% RH (non-condensing)

Dimensions/Weight: 200 × 175 × 56 mm / 690g (excluding batteries)

Accessories:

Main unit

Input cover

Output cover (BNC port)

IEC R14 (size "C") batteries

Jumper head (pre-installed on the main unit)

User manual

Test certificate.
