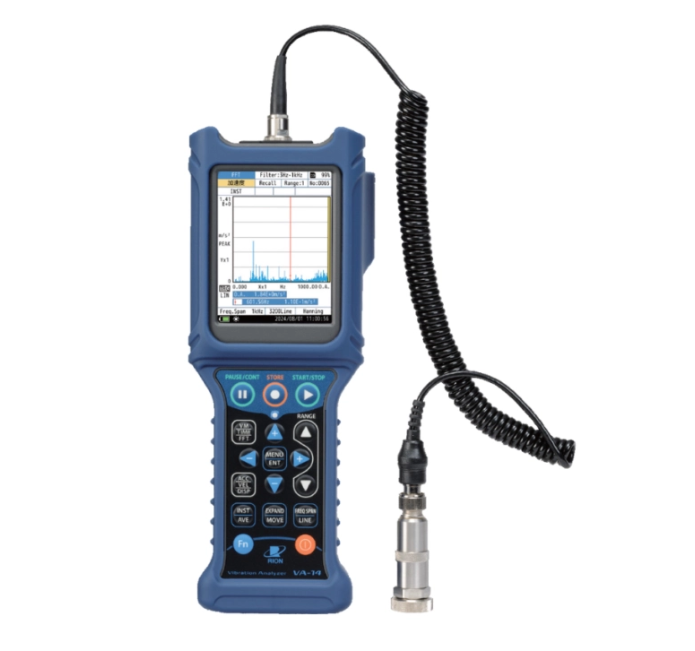

Standards:
CE Standards:
EMC Directive: 2014/30/EU EN 61326-1:2021
RoHS2 Directive: 2011/65/EU EN IEC 63000:2018
Low Voltage Directive: 2014/35/EU EN 61010-1:2010/A1:2019
WEEE: 2012/19/EU
China RoHS
Number of measurement channels: 1 channel
Connection port: BNC / CCLD power supply 20 V, 2 mA
Sensitivity setting:
Typical sensitivity value of PV-57I (included): 510×0.01 mV/(m/s²)
Other sensitivity setting range: 0.100 mV/(m/s²) to 99.9 mV/(m/s²)
Calibration:
Calibration can be performed using the VE-10 in addition to entering the sensitivity value provided with the accelerometer. However, care must be taken to avoid cable weight and vibration affecting the measurement. (VE-10 can calibrate up to 70 g, and the PV-57I alone weighs about 45 g.)
Calibration frequency：159.2 Hz
Calibration level：10 m/s²
Input connector:
Accelerometer connector: 1 channel (BNC)
Connector for piezoelectric accelerometer (standard accelerometer supplied: PV-57I)
Supports sensor drive (CCLD: 20 V, 2 mA)
When using PV-57I with built-in charge amplifier (CCLD type)
Frequency range: 1 Hz to 5 kHz
Maximum continuous acceleration measurement limit: 200 m/s² peak
External trigger input connector (TRIG IN): × 1 (micro jack, 2.5 mm diameter)
External trigger control using the falling edge of the level signal TTL
Input range:
When the sensitivity is (0.100 to 0.999) mV/(m/s²):
Acceleration (ACC): (10, 31.6, 100, 316, 1000, 3160, 10000) m/s²(rms)
Velocity (VEL): (31.6, 100, 316, 1000, 3160, 10000, 31600) mm/sec (rms)
Displacement (DISP): (0.89, 2.83, 8.94, 28.3, 89.4, 283, 894) mm (EQ P–P)
When using PV-57I or the sensitivity is (1.00 to 9.99) mV/(m/s²):
Acceleration (ACC): (1, 3.16, 10, 31.6, 100, 316, 1000) m/s²(rms)
Velocity (VEL): (3.16, 10, 31.6, 100, 316, 1000, 3160) mm/sec (rms)
Displacement (DISP): (0.089, 0.283, 0.89, 2.83, 8.94, 28.3, 89.4) mm (EQ P–P)
When the sensitivity is (10.0 to 99.9) mV/(m/s²):
Acceleration (ACC): ( 0.1, 0.316, 1, 3.16, 10, 31.6, 100) m/s²(rms)
Velocity (VEL): (0.316, 1, 3.16, 10, 31.6, 100, 316) mm/sec (rms)
Displacement (DISP): (0.0089, 0.0283, 0.089, 0.283, 0.89, 2.83, 8.94) mm (EQ P–P)
Measurement range (using PV-57I, high-pass filter 3 Hz, low-pass filter 5 kHz)
Acceleration: 0.02 m/s² to 141.4 m/s²（rms）(limited by the maximum continuous measurement acceleration of PV-57I)
Instantaneous maximum acceleration: 700 m/s²
Velocity: 0.2 mm/s to 141.4 mm/s（rms）(at input 159.15 Hz)
Displacement: 0.02 mm to 40.0 mm（EQ P–P）(at 15.915 Hz input)
Linear operating range (For full scale range, when electric signal is input (sensitivity setting: 5.10 mV/(m/s²)))
Acceleration: 0.02 m/s² to 1000 m/s²（rms）±2%（at 80 Hz input)
Velocity: 0.1 mm/s to 1000 mm/s（rms）±3％（at 159.15 Hz input)
Displacement: 0.0283 mm to 283 mm（EQ P–P）±5％（at 15.195 input Hz)
Measurement frequency range:
Acceleration: 1 Hz to 20 kHz
Velocity: 3 Hz to 3 kHz
Displacement: 3 Hz to 500 Hz
Acceleration envelope curve: 1 kHz to 20 kHz
Measurement unit: Vertical axis can be changed between linear and dB. The dB reference standard is as follows:
Acceleration: 1 m/s²
Velocity: 1 mm/s
Displacement: 1 mm
Dynamic range in FFT mode
Acceleration (with 80 Hz input electrical signal): 94 dB
Velocity (with 159.15 Hz input electrical signal): 80 dB
Displacement (with 80 Hz input electrical signal): 80 dB
Sampling frequency: 51.2 kHz
Display:
Display: 3.5 inch TFT-LCD. In FFT analysis mode and time waveform display (TIME), the cursor position is controlled via the touch panel.
Display resolution: QVGA（320×240）
Backlight: Off or brightness adjustment in two levels.
TIME/FFT/VM update cycle (bar graph): Minimum 100 ms
Digital value update cycle: 1 second
Time/TFT:
Overlay display function：Function to overlay the selected FFT/TIME measurement result from the [Recall] screen onto the graph
Top 10 result list (FFT Analysis mode)：OFF, TOP10, PEAK10
Zoom：The vertical and horizontal axes of the graph can be enlarged.
Language: English, Chinese, Japanese
Screen Capture: Capture the current image on the screen and save the image as a BMP file
Power Supply:
6 x AA alkaline batteries: working time about 12 hours
Consumption Current: About 130 mA (at 9 V power supply)
External Power Supply:
Type: DC jack (outer -, inner +), USB port (Type-C)
Operating Voltage: DC jack: 5.7 V to 15 V (recommended rated voltage 12 V), USB: 5V (operating at rated current 2.0 A or more)
Power Consumption: About 1.5 W (with AC adapter NE-21P)
Operating Temperature: −10 ℃ to +50 ℃, 10% to 90% RH (non-condensing)
Dimensions:
Without protective cover: 238.9 mm (H) × 80 mm (W) × 44.5 mm (D)
With protective case: 240.7 mm (H) × 91.9 mm (W) × 47.9 mm (D)
Weight: Approx. 665g (including protective case, battery and PV-57I)
Accessories included:
PV-57I Piezoelectric Accelerometer ×1
Coil cable (attached to PV-57I) ×1
VP-53S Magnet Mounting Kit ×1
PV-57I Calibration Chart ×1
Shoulder Strap ×1
AA Alkaline Batteries ×6
Instructions for Use: Quick Start Guide (English) ×1
Instructions for Use: Quick Start Guide (Japanese) ×1
512 MB SD Card ×1
China RoHS Documentation ×1
Accessories and Inspection Certificate ×1
