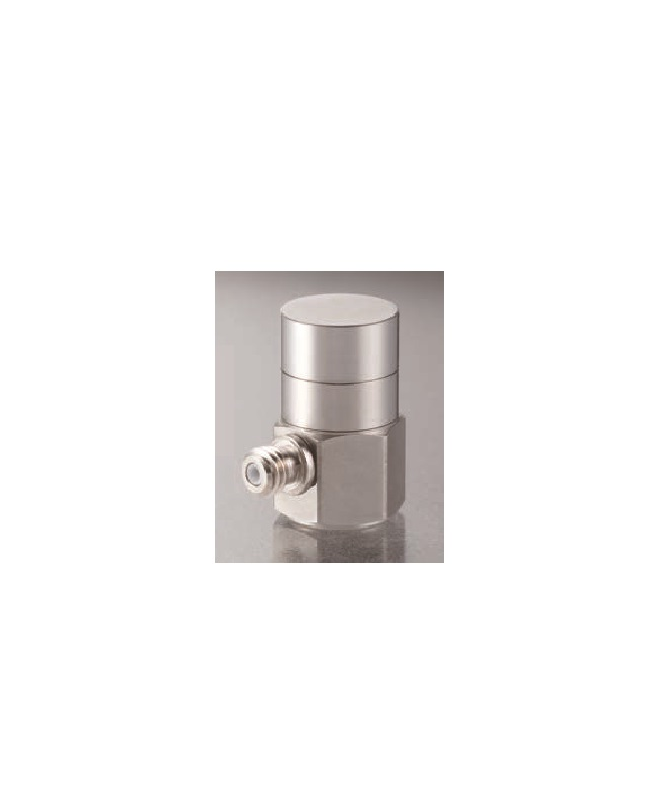

RION PV-91C Accelerometer

Outline/Purpose: Compact, lightweight, high temperature resistance

Principle: Shear type

Mass: 1.8 g

Charge sensitivity: N/A (-)

Voltage sensitivity: 1 mV/(m/s²)

Vibration frequency range (±1 dB): 1 to 20,000 Hz (±10%)

Mounting resonance frequency: 55 kHz

Transverse sensitivity: ≤ 5%

Maximum measurable acceleration (peak): 5,000 m/s²

Base strain sensitivity: 0.006 (m/s²)/µstrain

Thermal transient response: 0.04 (m/s²)/°C

Operating temperature range: -50 to +170 °C

Case material: Titanium

Connecting equipment: 2 mA to 4 mA constant current power supply
