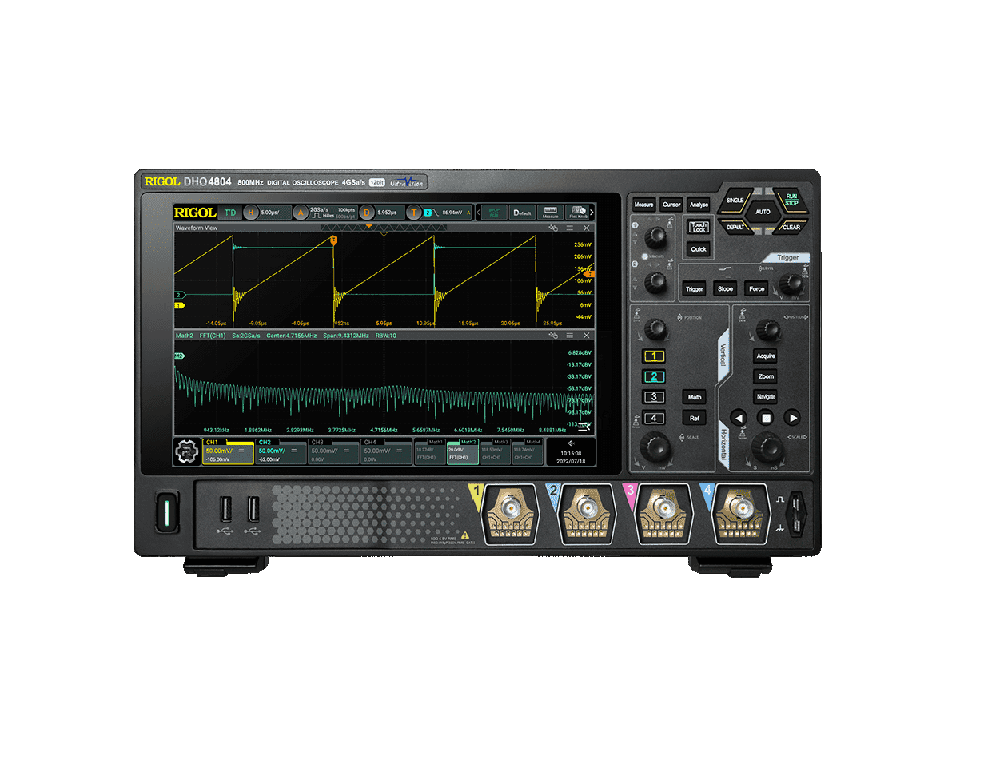

Analog Bandwidth 200 MHz
Input Channels: 4 analog channel inputs, 1 EXT channel input
Sampling Mode: Real-time sampling
Max. Sample Rate of Analog Channels: 4 GSa/s
ADC 12 bit
Rise time <1.75ns
Ultra-low noise floor at 18 μVrms in minimum
10.1'' 1280*800 HD touch display
Communication: LAN, USB & HDMI
41 auto measurements
Max. Waveform Capture Rate: >1,500,000wfm/s
Max. Memory Depth: 250 M
Input Impedance: 1 MΩ ± 1% ; 50 Ω ± 1%
Vertical Resolution: 12 bits
Accuracy[: < ±2.0%
Input Sensitivity Range: 100uV/div to 10 V/div
Time Base Range: 500ps/div to 1000s/div
Trigger mode: Auto, Normal, Single
Power supply: 100-240VAC, 50/ 60Hz, 400VA
Dimension: 358.14 mm (W)×214.72 mm (H)×120.62 mm (D)
Weight: 3.8 kg
Including: power cord, manual, analog test lead.
