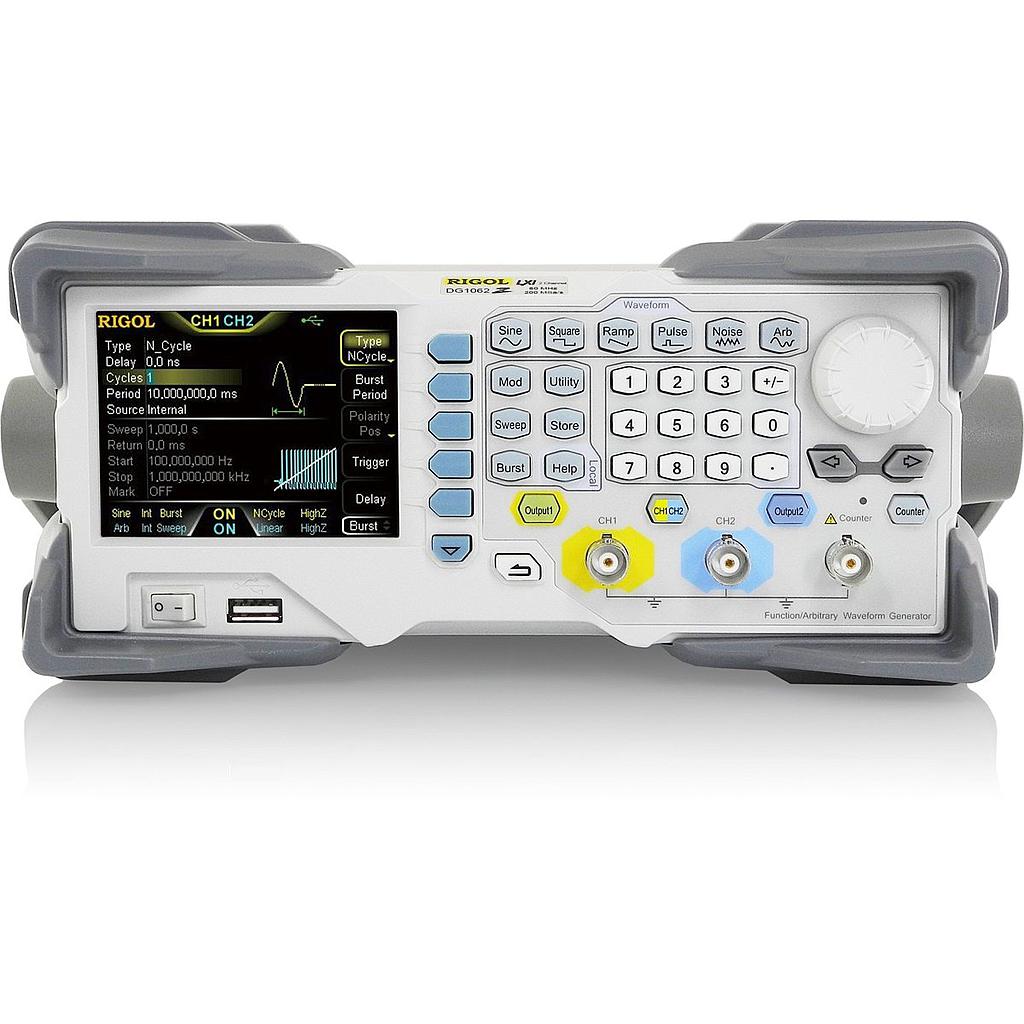

Channel 2
Maximum Frequency 25MHz
Sample Rate 200MSa/s
Waveforms
Basic waveforms Sine, Square, Ramp, Pulse, Noise
Built-in Arbitrary
Waveforms
160 kinds, including Sinc, Exponential Rise, Exponential
Fall, ECG, Gauss, HaverSine, Lorentz, Dual-Tone, etc.
Frequency Characteristics
Sine 1μHz to 25MHz
Square 1μHz to 25MHz
Ramp 1μHz to 500kHz
Pulse 1μHz to 15MHz
Harmonic 1μHz to 10MHz
Noise (-3dB) 25MHz
Output Characteristics
Amplitude (into 50 Ω)
Range
≤10MHz: 1.0mVpp to 10Vpp
≤30MHz: 1.0mVpp to 5.0Vpp
≤60MHz: 1.0mVpp to 2.5Vpp
Accuracy Typical (1kHz Sine, 0V Offset, >10mVpp, Auto)
±1% of setting ± 1mV
Flatness
Typical (Sine 2.5Vpp)
≤10MHz: ±0.1dB
≤60MHz: ±0.2dB
Units Vpp, Vrms, dBm
Resolution 0.1mVpp or 4digits
Offset (into 50 Ω)
Range (Peak ac+dc) ±5Vpk ac+dc
Accuracy ±(1% of setting+5mV+0.5% of amplitude)
Waveform Output
Impedance 50Ω (typical)
Protection Short-circuit protection, automatically disable waveform
output when overload occurs
Burst Characteristics
Carrier Waveform Sine, Square, Ramp, Pulse, Noise, Arb (except DC)
Carrier Frequency 2mHz to 25MHz
Burst Count 1 to 1,000,000 or Infinite
Start/Stop Phase 0° to 360°, 0.1° resolution
Internal Period 1μs to 500s
Gated Source External Trigger
Trigger Source Internal, External or Manual
Trigger Delay 0ns to 100s
Sweep Characteristics
Carrier Waveform Sine, Square, Ramp, Arb (except DC)
Type Linear, Log or Step
Direction Up/Down
Start/Stop Frequency Consistent with the upper/lower limit of the frequency of
the carrier waveform
Sweep Time 1ms to 500s
Hold/Return Time 0ms to 500s
Trigger Source Internal, External or Manual
Mark Falling edge of the Sync signal (programmable)
Counter
Function Frequency, Period, Positive/Negative Pulse Width,
Duty Cycle
Frequency Resolution 7 digits/second (Gate Time =1s)
Frequency Range 1μHz to 200MHz
Period Measurement Measurement Range
General Specifications
Power
Power Voltage 100V to 240V (45Hz to 440Hz)
Power Consumption Less than 40W
Fuse 250V, T3.15A
Display
Type 3-inch TFT LCD
Resolution 320 Horizontal×RGB×240 Vertical Resolution
Color 16M color
Mechanical
Dimensions(W×H×D) 261.5mm×112mm×318.4mm
Weight without package: 3.2kg
with package: 4.5kg
Interfaces USB Host, USB Device, LAN
