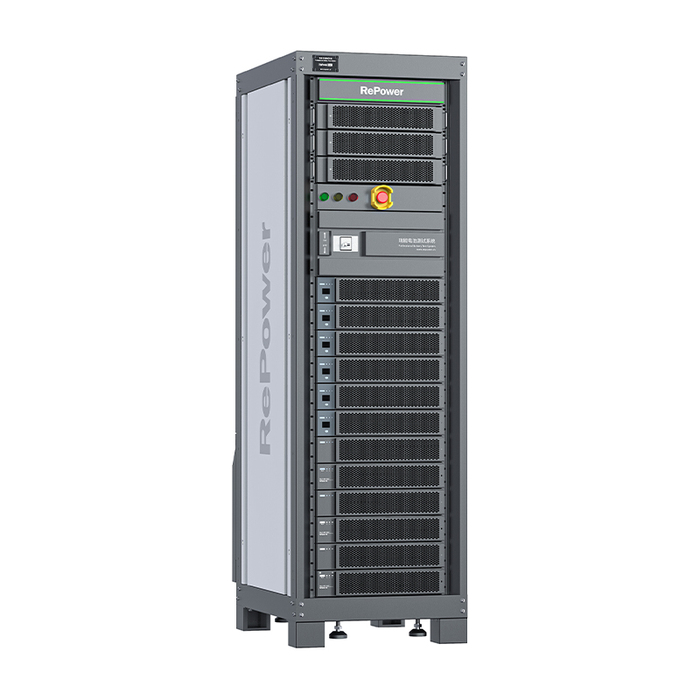

Repower HRCDS-100V~500V Power Battery Module/Pack Testing Solution (100V~500V)

Voltage Range: 100V~500V

Voltage Accuracy: ± 0.03% F.S

Voltage Resolution: 1mV

Current Range: 100A/150A/200A/300A/400A/600A

Current Accuracy: ± 0.03% F.S

Current Resolution: 1mA

Current start response time: 3ms (10%~90% F.S)

Current switching time: 5ms (-90%~90% F.S)

Third-party device integration: Supports linkage of temperature box, MTV/MTS, and I/O control box

Cabinet size (W×D×H mm): 600×800×2000

ADVANTAGES

Support single battery voltage consistence test

Support multi-channel parallel

Power factor value up to 0.99

Anti-reverse connection and data protection

Battery discharge and energy feedback efficiency ≥92%

Modular design, easy for maintenance

Support RS485/CAN communication, baud rate is changeable

Support DBC import at one-click

Support user-defined BMS values as control/protection parameters

Support slope charging and discharging

User-defined login management rights are supported

Support four-quadrant charging and discharging function (optional)

High-speed working condition pulse test

Current-SOC matrix test

Battery capacity test

Static/dynamic SOC test

Cycle life test

Charging/discharging test

Temperature characteristic test

DCIR test

APPLICATIONS

Applied in the testing and quality control of lithium battery modules & packs such as new energy vehicles, energy storage base stations, and can realize the integration of charging and discharging data monitoring.
