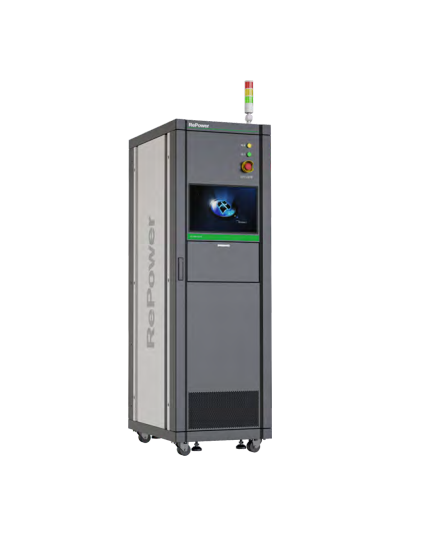

Repower EOL-PACK-60V~2000V Power Battery Pack EOL Testing Solution (PACK: 60V–2000V)

Voltage (Module): 60V–300V

Voltage (PACK): 60V–2000V

Charge and Discharge Current: 0–800A

AC Withstand Voltage: 0.05–5KV

DC Withstand Voltage: 0.05–6KV / 7.2KV / 10KV

AC Impedance: 0.1mΩ–3KΩ

DC Impedance: 0.1mΩ–3Ω

Insulation Resistance: 0.01MΩ–9.99GΩ / 50GΩ / 99.9GΩ

Ground Resistance: 0.001Ω–1.200Ω

Open-circuit Voltage: 0–1500V

BMS Communication Module: Supports communication protocols such as CANBus and RS485

Special Custom Module: Signal generator, air tightness detector, etc

Cabinet Size (WDH mm): 640 * 850 * 1980

ADVANTAGES

Integrated high-precision meter, reliable and standard testing result

Support production verification and research-oriented test for R&D

High compatibility, satisfy different testing requirements on module, mono box, and PACK unit

Functional module is expandable as required

Intelligent and automatic work process to save labors and improve testing efficiency

Exclusive open software platform, support instruments and meters of other brands

Software supports the analysis of various BMS communication protocols, pass-through analyze, without any algorithm process

Testing function and project development can be customized as required

APPLICATIONS

Applied in e-vehicle, e-bus, energy storage base, PACK EOL testing, and quality control
