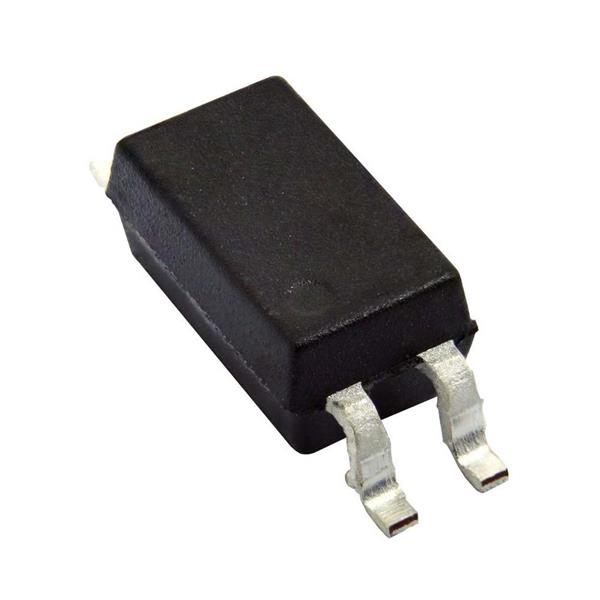

Renesas Electronics RV1S2251ACCSP-10YV#SC0 Transistor Output Optocouplers OPT2 CPLR GEN LSSOP OTHER NIPDAU

Fall Time: 6 us

Rise Time: 5 us

Output Type: NPN Phototransistor

Mounting Style: SMD/SMT

Isolation Voltage: 5000 Vrms

Number of Channels: 1 Channel

If - Forward Current: 2.5 mA

Vf - Forward Voltage: 1.37 V

Vr - Reverse Voltage: 5 V

Pd - Power Dissipation: 150 mW

Maximum Collector Current: 80 mA

Current Transfer Ratio - Max: 1000 %

Current Transfer Ratio - Min: 300 %

Maximum Operating Temperature: + 115 C

Minimum Operating Temperature: - 40 C

Maximum Collector Emitter Voltage: 40 V

Maximum Collector Emitter Saturation Voltage: 300 mV
