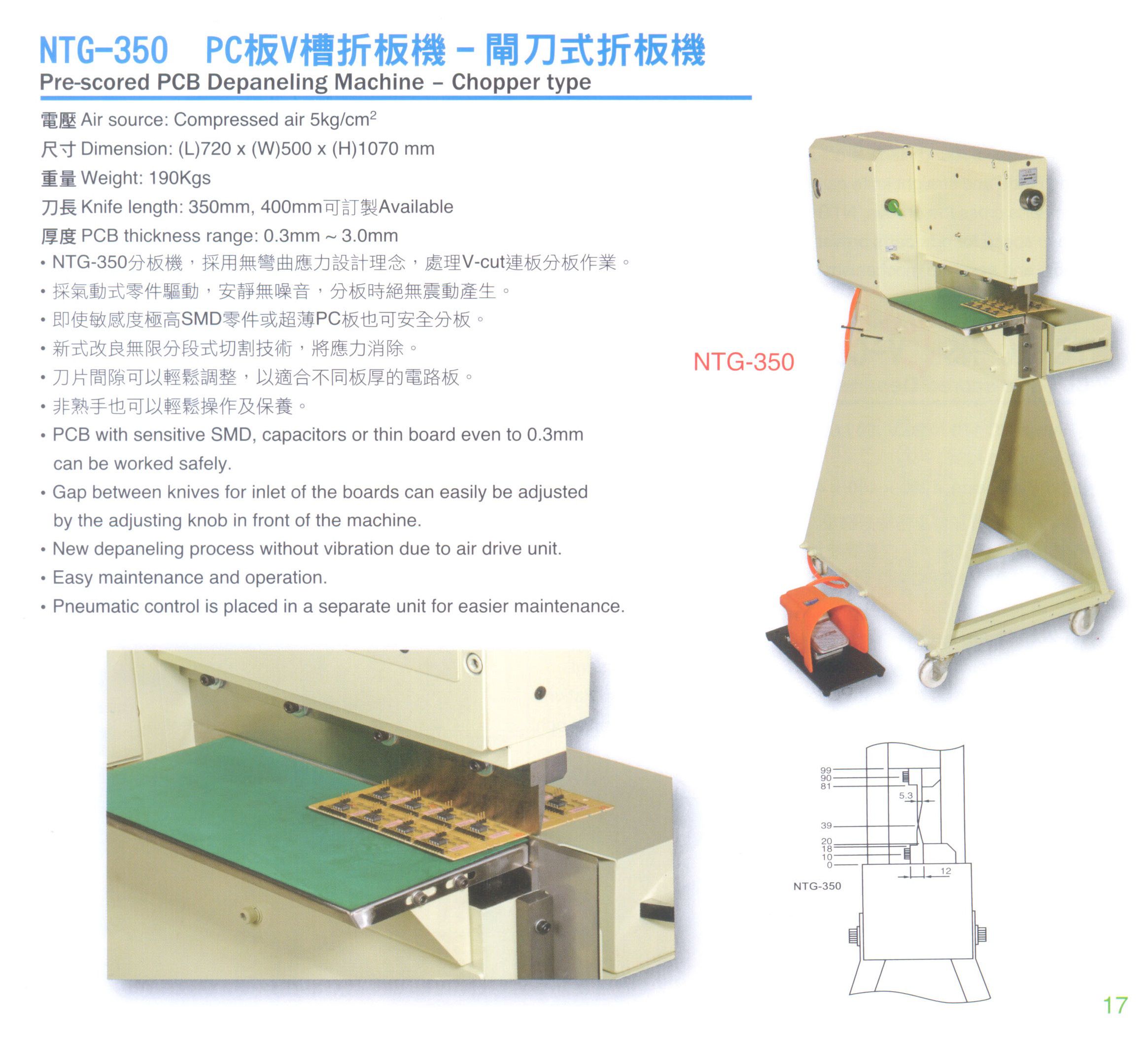

REN THANG NTG-350 PCB Depaneling Machine

Easy maintenance and operation.

Air source Compressed air: 5kg/cm2

Dimension: (L) 720 x (W) 500 x (H) 1070 mm

Weight: 190Kgs

Knife length: 350mm

PCB thickness range: 0.3mm ~ 3.0mm

FEATURES:

The machine was designed to depanel pre-scored panelboards carefully, without bending or tension stress.

Even sensitive SMD-Components like ceramic capacitors, will not be damaged by the depaneling process, or thin board even to 0.3mm cab be worked safely.

Due to the special design of the knives also boards with high components placed close to the edges can be depaneled safely.Based on a proven method of depaneling, wedge-shaped knives are used to cut the panels within the groove.

This enables the boards less than 1mm thickness to be separated safely and without creating stress. This machine is pneumatically driven using standard parts. It is noiseless operation with none of usual compressed air noises. Rigid design without vibration in operation

The PCB with sensitive SMD capacitor or thin board even to 0.3mm can be worked safely.Gap for insertion of the board can easily be adjusted by means of the adjusting knob in front of the machine.Gap for insertion of the board can easily be adjusted by means of the adjusting knob in front of the machine.Gap for insertion of the board can easily be adjusted by means of the adjusting knob in front of the machine.

Depaneling process without vibrations

Pneumatic control placed in a separate unit for easier maintenance.

Datasheet
