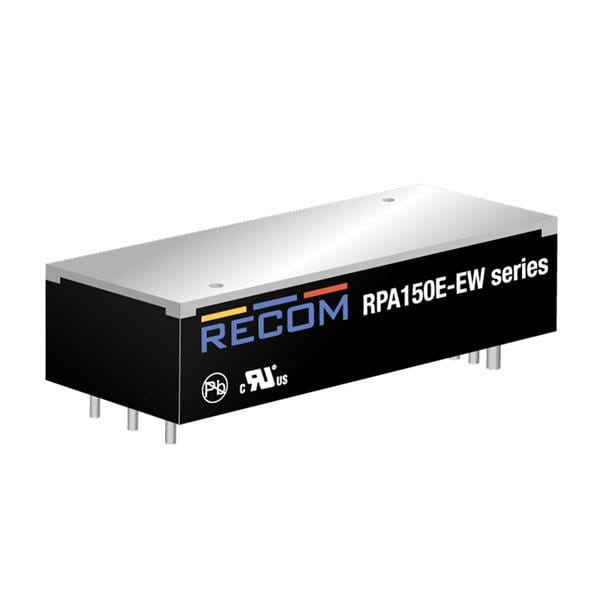

RECOM Power RPA150E-4848SEW/P Isolated 150W 9-60Vin 48Vout 3A Eighth Brick

Width: 22.8 mm (0.898 in)

Height: 13.5 mm (0.531 in)

Length: 58.4 mm (2.299 in)

Industry: Industrial

Dimensions: 58.4 mm x 22.8 mm x 13.5 mm

Output Power: 150 W

Input Voltage: +/- 9 VDC to +/- 60 VDC

Mounting Style: Through Hole

Isolation Voltage: 3 kV

Number of Outputs: 1 Output

Input Voltage - Max: 60 V

Input Voltage - Min: 9 V

Input Voltage, Nominal: 48 V

Output Current-Channel 1: 3 A

Output Voltage-Channel 1: 48 V

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
