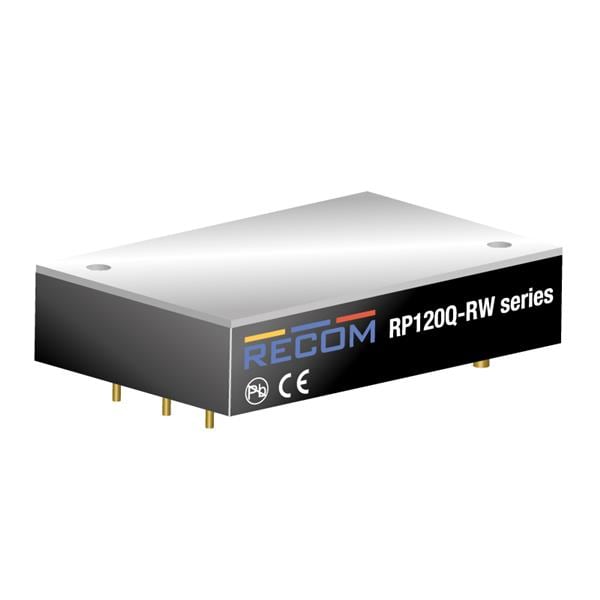

RECOM Power RP120Q-4815SRW/N Isolated 120W 16.5-75Vin 15Vout 8A

Width: 36.8 mm (1.449 in)

Height: 12.7 mm (0.5 in)

Length: 57.9 mm (2.28 in)

Industry: Industrial

Compliance: CE; EAC; IEC; REACH;RoHS

Efficiency: 90%

Unit Weight: 64 g

Output Power: 120 W

Input Voltage: 16.5 V to 75 V

Mounting Style: Through Hole

Isolation Voltage: 2.25 kV

Number of Outputs: 1 Output

Input Voltage - Max: 75 V

Input Voltage - Min: 16.5 V

Input Voltage, Nominal: 48 V

Standard Packaging Size: Quarter Brick

Output Current-Channel 1: 8 A

Output Voltage-Channel 1: 15 V

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
