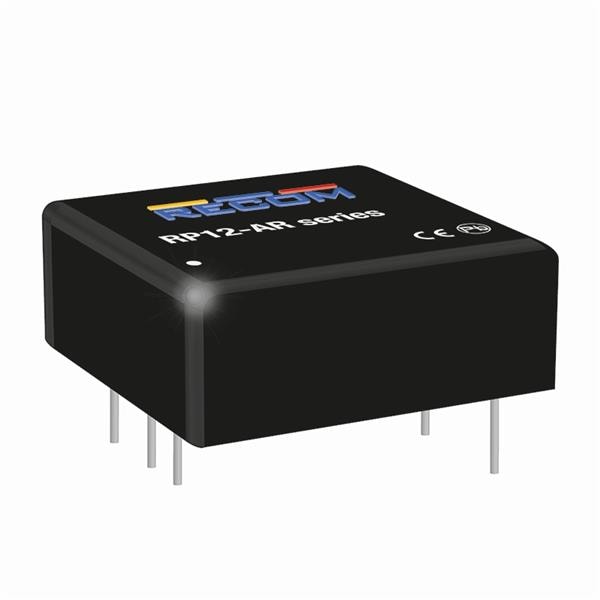

RECOM Power RP12-11024SAR/XC Isolated 12W 36-160Vin 24Vout 500mA

Width: 25.4 mm (1 in)

Height: 9.9 mm (0.39 in)

Length: 25.4 mm (1 in)

Industry: Medical, Industrial

Compliance: CE; ERP; IEC; REACH;RoHS

Efficiency: 90%

Unit Weight: 16.500 g

Output Power: 12 W

Input Voltage: 36 V to 160 V

Mounting Style: Through Hole

Isolation Voltage: 3 kV

Number of Outputs: 1 Output

Input Voltage - Max: 160 V

Input Voltage - Min: 36 V

Input Voltage, Nominal: 110 V

Standard Packaging Size: 1 x 1

Output Current-Channel 1: 500 mA

Output Voltage-Channel 1: 24 V

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
