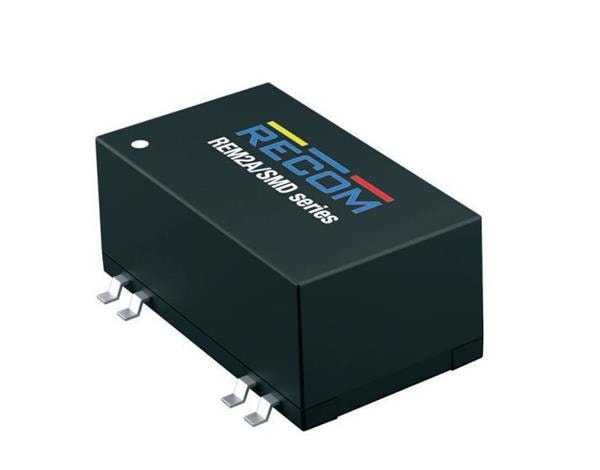

RECOM Power REM2A-0515S/SMD Isolated 2W 4.5-12Vin 15Vout 134mA

Width: 14.4 mm

Height: 10.2 mm

Length: 24.3 mm

Industry: Medical, Industrial

Dimensions: 24.3 mm x 14.4 mm x 10.2 mm

Application: Building and Home Automation, Industrial and Automation, Medical, Test and Measurements

Output Power: 2 W

Input Voltage: 4.5 VDC to 12 VDC

Mounting Style: SMD/SMT

Isolation Voltage: 5 kV

Number of Outputs: 1 Output

Input Voltage - Max: 12 V

Input Voltage - Min: 4.5 V

Output Current-Channel 1: 134 mA

Output Voltage-Channel 1: 15 V

Maximum Operating Temperature: + 105 C

Minimum Operating Temperature: - 40 C
