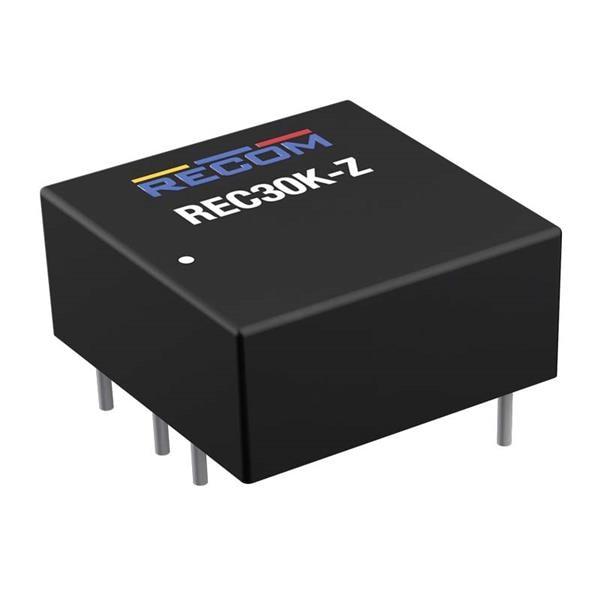

RECOM Power REC30K-2412DZ Isolated 30W 9-36Vin +/-12Vout +/-1.25A

Width: 25.4 mm (1 in)

Height: 10.2 mm (0.402 in)

Length: 25.4 mm (1 in)

Industry: Industrial

Dimensions: 25.4 mm x 25.4 mm x 10.2 mm

Application: Industrial

Output Power: 30 W

Input Voltage: 9 VDC to 36 VDC

Mounting Style: Through Hole

Isolation Voltage: 2 kV

Number of Outputs: 2 Output

Input Voltage - Max: 36 V

Input Voltage - Min: 9 V

Output Current-Channel 1: 1.25 A

Output Current-Channel 2: 1.25 A

Output Voltage-Channel 1: 12 V

Output Voltage-Channel 2: - 12 V

Maximum Operating Temperature: + 105 C

Minimum Operating Temperature: - 40 C
