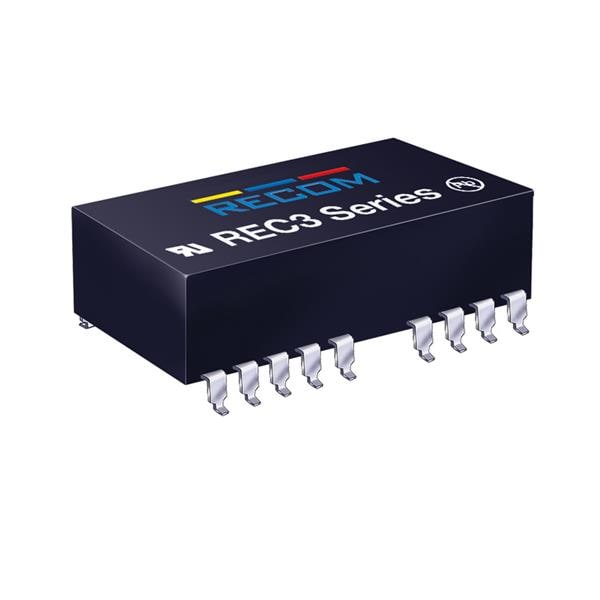

RECOM Power REC3-4815DRWZ/H2/A Isolated 3W DC/DC 2kV REG 4:1 18-72Vin +/-15Vout
Manufacturer: RECOM Power Model: REC3-4815DRWZ/H2/A - Contact
Width: 20.3 mm (0.799 in)
Height: 10.2 mm (0.402 in)
Length: 32 mm (1.26 in)
Industry: Industrial
Unit Weight: 13 g
Output Power: 3 W
Input Voltage: 18 V to 72 V
Mounting Style: Through Hole
Isolation Voltage: 2 kV
Number of Outputs: 2 Output
Input Voltage - Max: 72 V
Input Voltage - Min: 18 V
Input Voltage, Nominal: 48 V
Output Current-Channel 1: 100 mA
Output Current-Channel 2: 100 mA
Output Voltage-Channel 1: 15 V
Output Voltage-Channel 2: - 15 V
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
