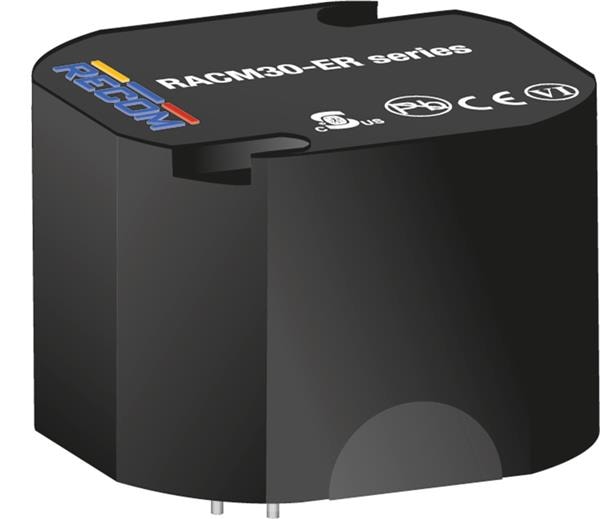

RECOM Power RACM30-24SER AC/DC Output Modules 30W 90-264Vin 24Vout 1.25A IP68MED

Width: 51 mm

Height: 33.5 mm

Length: 53 mm

Industry: Medical

Approvals: IEC/EN60335-1, IEC/EN60950-1, IEC/EN61558-2-16, UL60601-1, UL60950-1

Compliance: ANSI; CAN/CSA; CE; EAC; ERP; FCC; IEC; RoHS; UL

Efficiency: 89.5%

Unit Weight: 128 g

Output Power: 30 W

Input Voltage: 90 VAC to 264 VAC

Mounting Style: Through Hole

Input Frequency: 47 Hz to 63 Hz

Load Regulation: Regulated

Isolation Voltage: 4.4 kVAC

Number of Outputs: 1 Output

Input Voltage - Max: 264 VAC

Input Voltage - Min: 90 VAC

Open Frame/Enclosed: Enclosed

Output Current-Channel 1: 1.25 A

Output Voltage-Channel 1: 24 VDC

Maximum Operating Temperature: + 50 C

Minimum Operating Temperature: - 25 C
