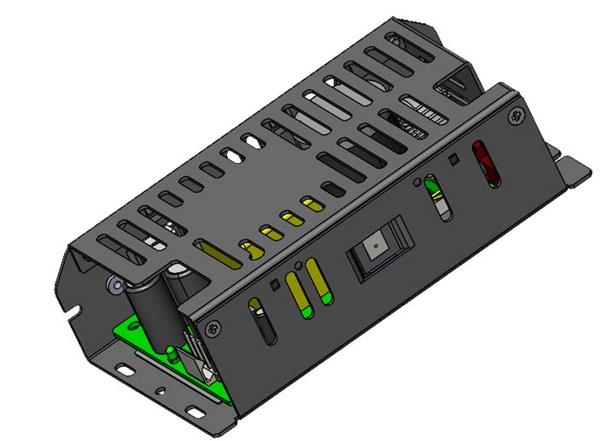

RECOM Power RACM140E-48SK/ENC Switching Supplies 140W 80-264Vin 48Vout 2.9A Enc

Width: 81.5 mm (3.209 in)

Height: 40 mm (1.575 in)

Length: 147 mm (5.787 in)

Industry: Medical, Industrial

Dimensions: 147 mm x 81.5 mm x 40 mm

Efficiency: 90 %

Output Power: 140 W

Input Voltage: 80 VAC to 264 VAC, 120 VDC to 370 VDC

Input Frequency: 47 Hz to 63 Hz

Load Regulation: Regulated

Isolation Voltage: 4.2 kVAC, 4 kVDC

Number of Outputs: 1 Output

Open Frame/Enclosed: Enclosed

Output Current-Channel 1: 2.9 A

Output Voltage-Channel 1: 48 VDC

Maximum Operating Temperature: + 90 C

Minimum Operating Temperature: - 40 C
