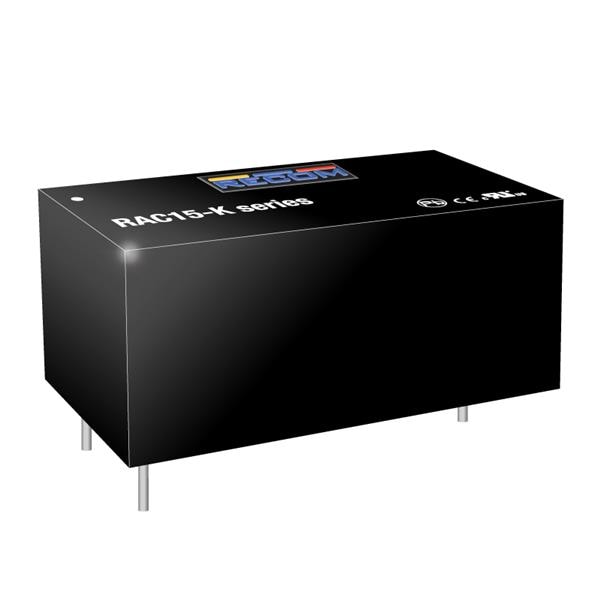

RECOM Power RAC15-24SK AC/DC Output Modules 15W 85-264Vin 24Vout 630mA

Width: 27.4 mm

Height: 23 mm

Length: 52.5 mm

Industry: Industrial

Compliance: CAN/CSA; CE; IEC; ERP; RoHS; UL

Efficiency: 85%

Unit Weight: 60 g

Output Power: 15 W

Input Voltage: 85 VAC to 264 VAC, 120 VDC to 370 VDC

Mounting Style: Through Hole

Input Frequency: 47 Hz to 63 Hz

Load Regulation: Regulated

Isolation Voltage: 3 kVAC

Number of Outputs: 1 Output

Input Voltage - Max: 264 VAC

Input Voltage - Min: 85 VAC

Open Frame/Enclosed: Enclosed

Standard Packaging Size: 2 x 1

Output Current-Channel 1: 630 mA

Output Voltage-Channel 1: 24 VDC

Maximum Operating Temperature: + 55 C

Minimum Operating Temperature: - 40 C
