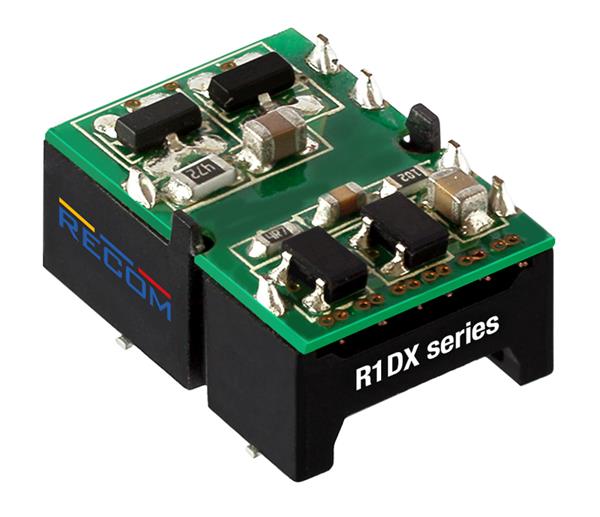

RECOM Power R1DX-0515-R Isolated 1W 5Vin +/-15Vout 33mA Dual Out

Width: 11.1 mm

Height: 8 mm

Length: 15.24 mm

Industry: Industrial

Compliance: CAN/CSA; IEC; RoHS; UL

Efficiency: 80%

Adjust Type: Fixed

Application: Fully Automated Assembly

Unit Weight: 1.200 g

Output Power: 1 W

Input Voltage: 4.5 V to 5.5 V

Mounting Style: SMD/SMT

Isolation Voltage: 1 kV

Number of Outputs: 2 Output

Input Voltage - Max: 5.5 V

Input Voltage - Min: 4.5 V

Input Voltage, Nominal: 5 V

Output Current-Channel 1: 33 mA

Output Current-Channel 2: 33 mA

Output Voltage-Channel 1: 15 V

Output Voltage-Channel 2: - 15 V

Maximum Operating Temperature: + 95 C

Minimum Operating Temperature: - 40 C
