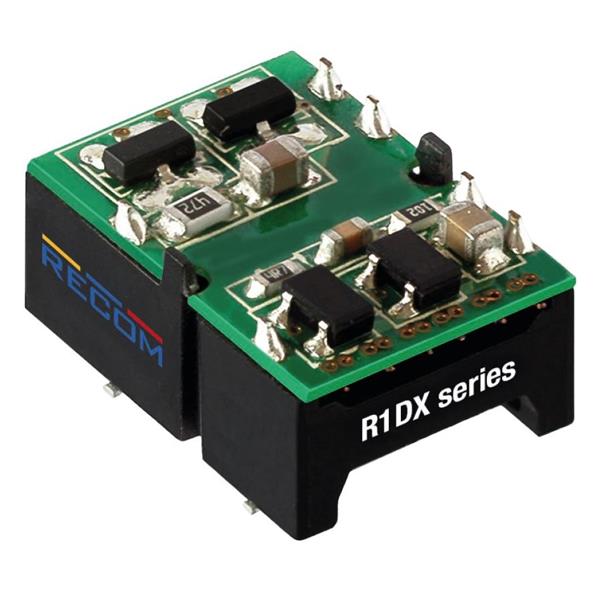

RECOM Power R1DX-0512/H-TRAY Isolated 1W 5Vin +/-12Vout 42mA Unregulated

Width: 11.1 mm

Height: 8 mm

Length: 15.24 mm

Industry: Industrial

Compliance: CAN/CSA; IEC; RoHS; UL

Efficiency: 80%

Unit Weight: 1.200 g

Output Power: 1 W

Input Voltage: 4.5 V to 5.5 V

Mounting Style: SMD/SMT

Isolation Voltage: 3 kV

Number of Outputs: 2 Output

Input Voltage - Max: 5.5 V

Input Voltage - Min: 4.5 V

Input Voltage, Nominal: 5 V

Output Current-Channel 1: 42 mA

Output Current-Channel 2: 42 mA

Output Voltage-Channel 1: 12 V

Output Voltage-Channel 2: - 12 V

Maximum Operating Temperature: + 95 C

Minimum Operating Temperature: - 40 C
