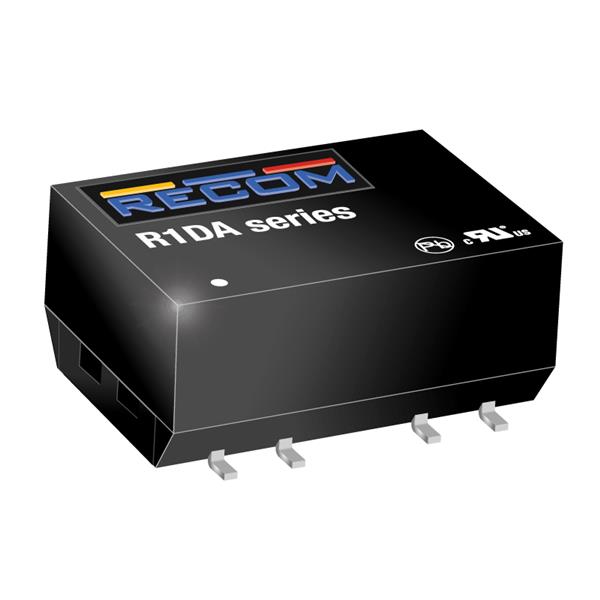

RECOM Power R1DA-090505-R Isolated 1W 9Vin/5Vout 100mA Dual Output

Width: 10.7 mm

Height: 7 mm

Length: 15.24 mm

Industry: Industrial

Compliance: CAN/CSA; EAC; IEC; RoHS; UL

Efficiency: 0.78

Unit Weight: 1.200 g

Output Power: 1 W

Input Voltage: 8.1 V to 9.9 V

Mounting Style: SMD/SMT

Isolation Voltage: 1 kV

Number of Outputs: 2 Output

Input Voltage - Max: 9.9 V

Input Voltage - Min: 8.1 V

Input Voltage, Nominal: 9 V

Output Current-Channel 1: 100 mA

Output Current-Channel 2: 100 mA

Output Voltage-Channel 1: 5 V

Output Voltage-Channel 2: 5 V

Maximum Operating Temperature: + 100 C

Minimum Operating Temperature: - 40 C
