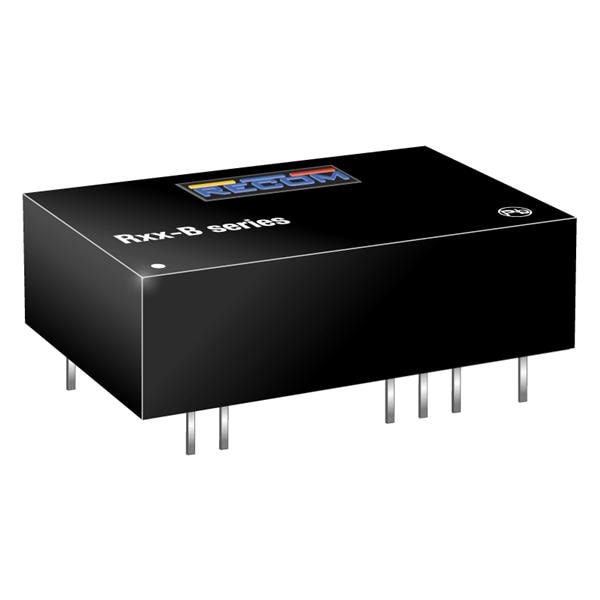

RECOM Power R15-150B Isolated 5W 15V 3kV ADJUST OUT DIP24

Width: 20.3 mm (0.799 in)

Height: 9.4 mm (0.37 in)

Length: 31.2 mm (1.228 in)

Industry: Industrial

Compliance: EAC; IEC; RoHS; UL

Efficiency: 82%

Unit Weight: 12 g

Output Power: 5 W

Input Voltage: 14 V to 17 V

Mounting Style: Through Hole

Isolation Voltage: 3 kV

Number of Outputs: 1 Output

Input Voltage - Max: 17 V

Input Voltage - Min: 14 V

Input Voltage, Nominal: 15 V

Output Current-Channel 1: 50 mA

Output Voltage-Channel 1: 210 V

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
