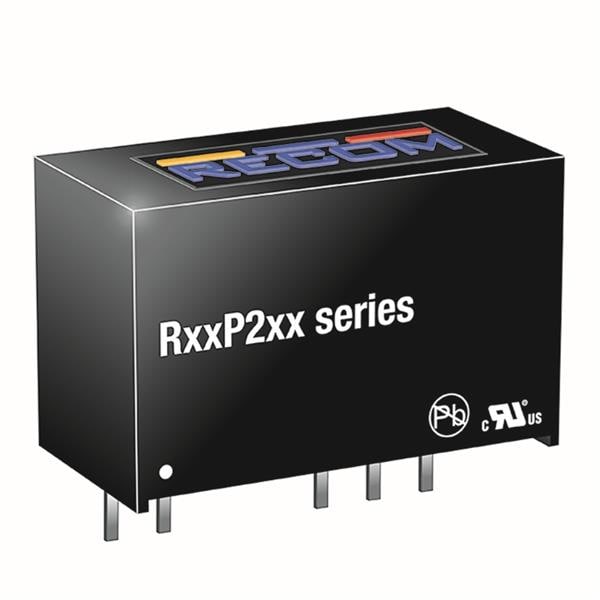

RECOM Power R05P209D Isolated 2W DC/DC 5.2kV UNREG 5Vin +/-9Vout

Width: 9.8 mm (0.386 in)

Height: 12.5 mm (0.492 in)

Length: 19.5 mm (0.768 in)

Industry: Industrial

Compliance: CAN/CSA; EAC; IEC; RoHS; UL

Efficiency: 75%

Unit Weight: 4.300 g

Output Power: 2 W

Input Voltage: 4.5 V to 5.5 V

Mounting Style: Through Hole

Isolation Voltage: 6.4 kV

Number of Outputs: 2 Output

Input Voltage - Max: 5.5 V

Input Voltage - Min: 4.5 V

Input Voltage, Nominal: 5 V

Output Current-Channel 1: 111 mA

Output Current-Channel 2: 111 mA

Output Voltage-Channel 1: 9 V

Output Voltage-Channel 2: - 9 V

Maximum Operating Temperature: + 95 C

Minimum Operating Temperature: - 40 C
