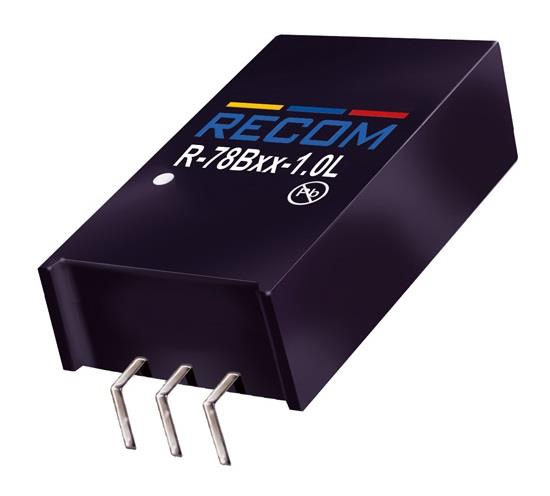

RECOM Power R-78B2.5-1.0L Non-Isolated / PoL 1A DC/DC REG 4.75-34Vin 2.5Vout
Manufacturer: RECOM Power Model: R-78B2.5-1.0L - Contact
Width: 8.5 mm (0.335 in)
Height: 17.5 mm (0.689 in)
Length: 11.5 mm (0.453 in)
Industry: Industrial
Compliance: EAC; IEC; RoHS
Efficiency: 85%
Unit Weight: 4 g
Output Power: 2.5 W
Mounting Style: Through Hole
Number of Outputs: 1 Output
Input Voltage - Max: 32 V
Input Voltage - Min: 4.75 V
Output Current-Channel 1: 1 A
Output Voltage-Channel 1: 2.5 V
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
