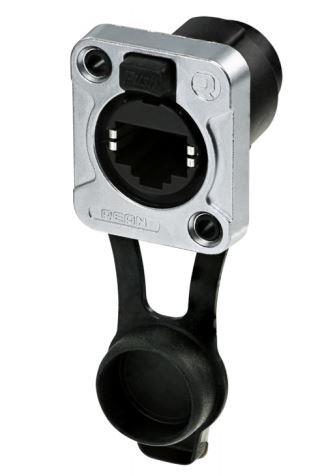

REAN RRE8F-Z-000-0 XLR FEM RJ45 RCPT D-FLNG IP65 GOLD/NICKEL

Color: Silver

Gender: Jack (Female)

IP Rating: IP65

Shielding: Shielded

USOC Codes: RJ45

Application: 10/100/1000 Base-T PoE+

Configuration: 1x1

Mating Cycles: 1000 Cycles

Tab Direction: Tab Down

Current Rating: 1.5 A

Mounting Angle: Straight

Mounting Style: Flange Mount

Voltage Rating: 50 V

Contact Plating: Gold

Number of Ports: 1 Port

Contact Material: Brass

Locking Mechanism: Latch-Lock

Termination Style: Solder

Dielectric Strength: 1 kVDC

Flammability Rating: UL 94 V-0

Performance Category: Cat 5e

Insulation Resistance: 500 MOhms

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 20 C

Number of Positions / Contacts per Port: 8P8C
