Performance Indicators
Detector Type: Uncooled VOx infrared detector
Resolution: 640×512
Detector Frame Rate: 25Hz
Pixel Pitch: 12μm
Spectral Band: 8~14μm
NETD: ≤40mK at 25℃,F#1.0
Image Adjustment
Palette: Support (20 types)
Digital Zoom: 1.0~8.0× continuous zoom (step size: 0.1)
Image Processing: Non-uniformity correction/Brightness and contrast adjustment/Temporal filtering/Spatial filtering noise reduction/Digital detail enhancement/Style adjustment
Mirroring: Horizontal/Vertical/Diagonal
Network Function
Network Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, RTCP, IGMP, SMTP, NTP, QoS and other network protocols.
Platform Access: Modbus TCP, MQTT protocols, ONVIF, GB28181, and SDK.
Simultaneous Previewed Videos: Up to 8 channels
User Management: Up to 20 users, 3 levels: administrator, operator and user
Browser: Google, Firefox, Edge, etc.
Intelligent Functions
Intelligent Video: Support
Intelligent Alarm: Detects abnormalities, including network cable disconnections, IP address conflicts, memory errors, unauthorized access, and burn warnings, and triggers an alarm in response.
Intelligent Detection: Supports intelligent analysis of events such as regional intrusion, tripwire intrusions and passenger and vehicle recognition.
Alarm Linkage: Video taking/Image capture (thermal image capture supported)/Email/Linked PTZ/Alarm output

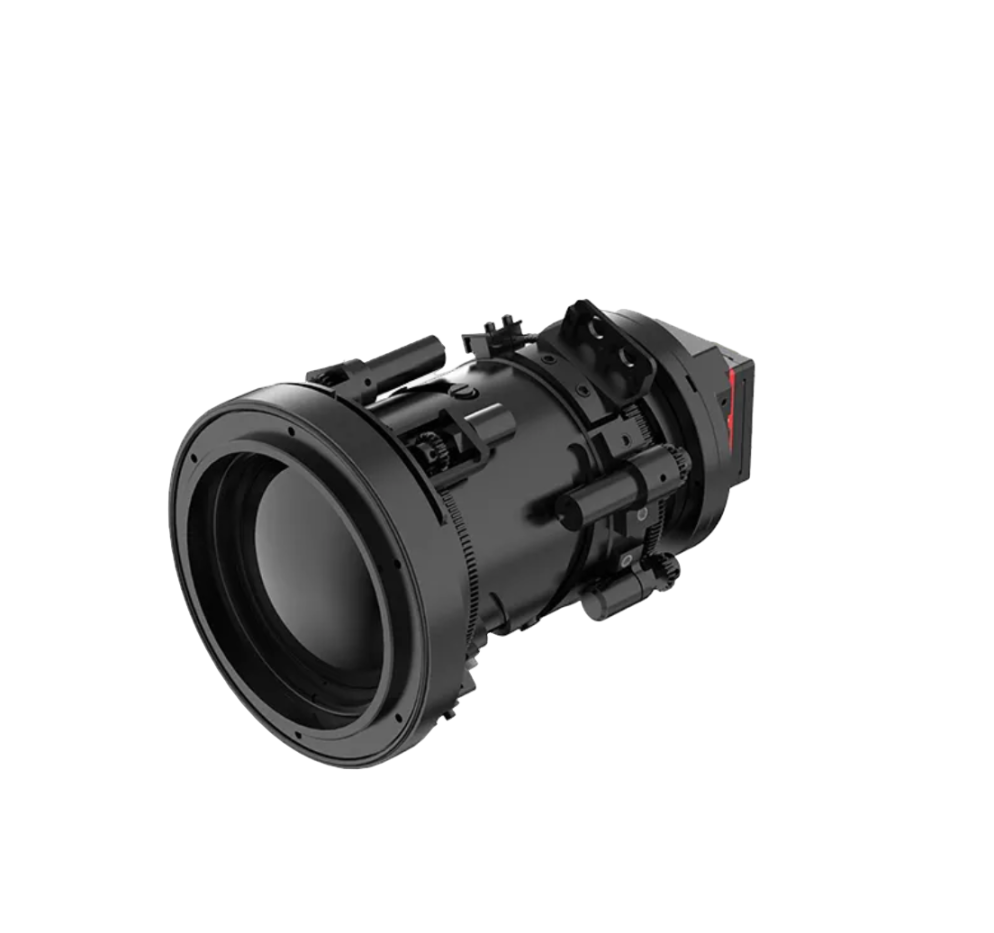

Lens
Lens Type: Athermalized/Motorized fixed-focus /Continuous zoom
Focus Mode: Manual/Automatic
Electric Focusing: Support
Electric Zooming: support
Digital
Power Supply Range: 5-24V DC (Recommended voltage of 12V DC)
Typical Power Consumption at 25°C: ＜1.5w
Digital Video: LVCMOS/BT.601/BT.1120
Communication Interface: RS-232/UART
Network Type
Power Supply Range: 9-15V DC (Recommended voltage of 12V DC)
Typical Power Consumption at 25°C: ＜2.0w
Communication Interface: One RJ45 10M/100M adaptive Ethernet port, one RS-485, one UART
Alarm Interface: One alarm input, one alarm output
Audio Interface: One audio input, one audio output
Interface
Analog Video: 1-channel PAL system
Environment Adaptability
Operating Temperature: -40℃～+70℃
Storage Temperature: -45℃～+85℃
Humidity: 5-95%, non-condensing
PTZ Function
Fire Warning: Supports fire point detection.
Thermal Imaging
Measurement Range: -20℃~﹢150℃, 0℃~﹢650℃
Measurement Accuracy: ±2°C or 2% (The greater shall prevail)@ambient temperature -20°C ~ +60°C
