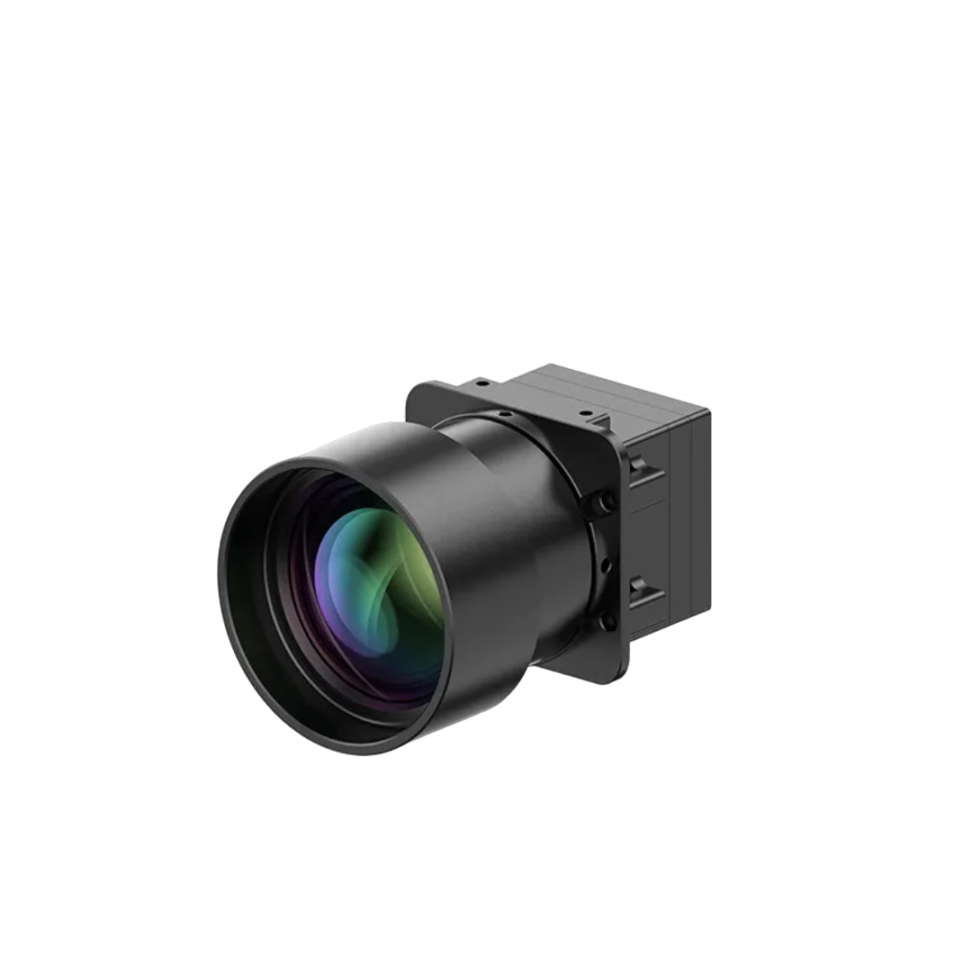

Raythink Turing A1280H Uncooled Infrared Module (1280×1024; 8~14μm)

Performance Indicators

Detector Type: Uncooled VOx infrared detector

Resolution: 1280×1024

Frame Rate: 30Hz

Pixel Pitch: 12μm

Spectral Band: 8~14μm

NETD: ≤40mK at 25℃, F#1.0

Thermal Time Constant: ≤15ms

Image Adjustment

Brightness/Contrast Adjustment: Automatic/Manual brightness and contrast adjustment

Polarity: Black-hot/White-hot

Palette: Support

Image Correction: Automatic/Manual/Background correction is available

Reticle: Display/Blank (default)/Move (digital video)

Digital Zoom: 1.0~8.0 continuous zoom (step size:0.1)

Image Processing: TEC-less temperature control algorithm, Non-uniformity correction, digital filtering noise reduction, and digital detail enhancement

External Synchronization Function: Self-synchronization/Internal synchronization/External synchronization/Adaptive synchronization mode

Mirroring: Horizontal/Vertical/Diagonal

Power Supply

Power Supply Range (typical): 6-20V, Typical supply 6V

Typical Power Consumption at 25°C Without Extension: Steady status ≤1W

Insulation Protection: The enclosure ground is insulated from signal and power ground with an insulation resistance of >10MΩ

Interface

Digital Video: BT.1120/LVCMOS

Analog Video: none

Serial Communication Interface: RS422/RS232/UART

Extension Components: Camera Link/BT.1120/HDMI/USB

External Synchronization: LVTTL

Physical Characteristics

Dimensions (Without lens and extension components): 32mm×32mm×25.5mm

Weight (3.2mm, without extension components): 43g±5g

Environment Adaptability

Operating Temperature: -40°C~+60°C

Storage Temperature: -45°C~+70°C

Humidity: 5 ~ 95%, non-condensing

Vibration: 6.06g, random vibration, three axes, 5min/axis

Impact: 1000g@0.3ms, optical axis direction
