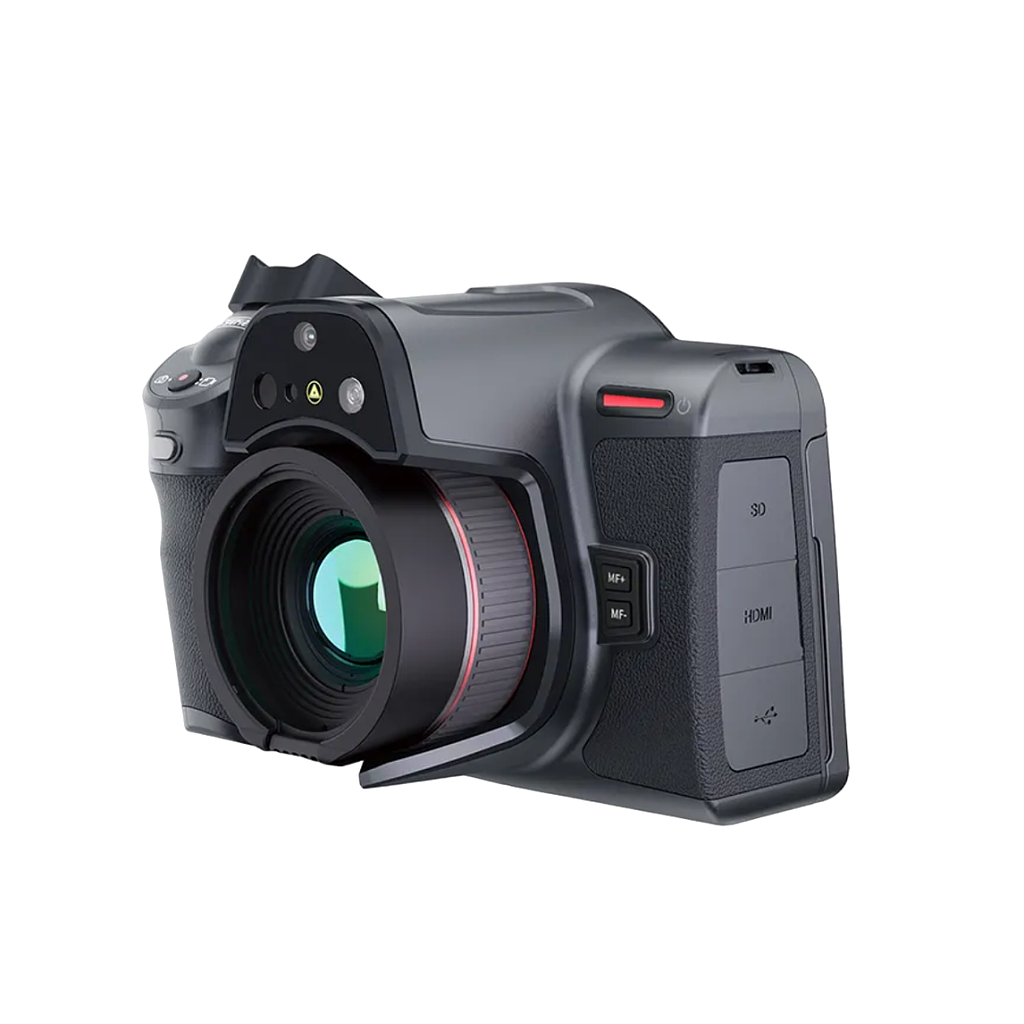

Raythink RS1280 Flagship Thermal Camera (-20°C~800°C)

Detector Type: Uncooled infrared detector

Infrared Resolution: 1280 x 1024

Pixel Size: 12μm

Super Resolution: 2560 x 2048

Spectral Band: 7.5-14μm

Thermal Sensitivity (NETD): ＜25mK (25°C,F1.0)

Frame Rate: 30Hz

Lens Focal Length: Standard lens: 34.9mm; wide-angle lens: 19.8mm; telephoto lens: 72.9mm; macro lens (0.2×): 17.8mm; super macro lens (0.4×): 15.2mm

FOV: Standard lens: 25°×20°; telephoto lens: 12°×9.6°; wide-angle lens: 45°×36°

Spatial Resolution (IFOV): Standard lens: 0.34mrad; telephoto lens: 0.17mrad; wide-angle lens: 0.6mrad; macro lens: One pixel corresponds to 50μm; super macro lens: One pixel corresponds to 25μm.

Focusing Mode: Manual focus,electri micro focus, one-button center focus, automatic center focus,single-touch automatic focus, laser-assisted focus

Minimum Imaging Distance: Standard lens: 0.5m; telephoto lens: 2.3m; wide-angle lens: 0.2m; macro lens: 46mm; super macro lens: 13mm

Measurement Range: Standard: -20°C~+150°C (low temperature range), 150°C~800°C (medium temperature range). Optional: 400°C~1500°C, other ranges (high temperature range)

Imaging Display

Display: 5.5-inch LCD touch screen, resolution 1920×1080

Visible light camera: 13 megapixels

Digital Zoom: 1–15 times, continuously adjustable roller

Palettes: 19 options

Image Mode: Infrared, visible light, PIP, dual-spectrum fusion

Temperature Width Stretch: support

Measurement and Analysis

Laser Rangefinding: Support

Area Measurement: Support

Position: Support

Temperature Difference Analysis: Support

Trend Analysis: Supports temperature trend recording and analysis.

Image Freezing: Support

Analysis Report: PDF format. Support editing and template importing on the PC client.

Supporting Software: PC (Infrared Analysis Software) & Mobile Device (iOS/Android APP)

Image Storage

Standard 64GB MicroSD. Support SD, SDHC, and SDXC, up to 2TB.

Text Notes: support

Voice Annotation: support

Video Functions

Radiation Infrared Video Recording: Support compressed full radiation video recording (.irv), up to 15Hz video recording

Non-radiation Infrared or Visible Light Video Recording: Standard MP4 video recording

Radiation Infrared Video Stream Transmission: Analysis at about 25Hz on PC

Non-radiation Infrared Video Stream Transmission: RTSP H.264

Video Resolution: 1920×1080

System Functions

Ổn định hình ảnh thông minh: Hỗ trợ

Ghép ảnh toàn cảnh thông minh: Hỗ trợ

Kiểm tra định kỳ thông minh: Hỗ trợ. Nhập và chỉnh sửa gói tác vụ chung, đặt tên hình ảnh tiêu chuẩn và tự động

Ghi lại tự kiểm tra trong kiểm tra định kỳ: Hỗ trợ

Ghi hình video hai phổ: Quay đồng thời video hồng ngoại và video ánh sáng nhìn thấy, ở định dạng MP4

Giao thức truyền thông: Wi-Fi, Bluetooth, USB

Điều khiển bằng giọng nói: Trợ lý giọng nói, nhận diện lệnh nhanh

Flashlight: Hỗ trợ

Others

Microphone/Speaker: support

Battery: 9000mAh lithium-ion battery, field-replaceable, fast charging

Charging Mode: USB Type-C or desktop charger

Battery Life: Continuous operating time ≥ 3 hours (depending on the actual environment and service conditions)

Interface: USB3.0 Type-C, SD card, SIM card, Mini HDMI

Tripod Socket: UNC 1/4-20 interface for tripod

Operating Temperature: -15°C~+50°C

Operating Humidity: 10%~95% (non-condensing)

Storage Temperature: -40°C~+70°C

Ingress Protection Rating: IP54

Shock and Vibration

Shock: 25g (IEC 60068-2-27); vibration: 2.5g (IEC60068-2-6)

Weight and Dimensions: <1.7kg (with battery), 140×210×115mm
