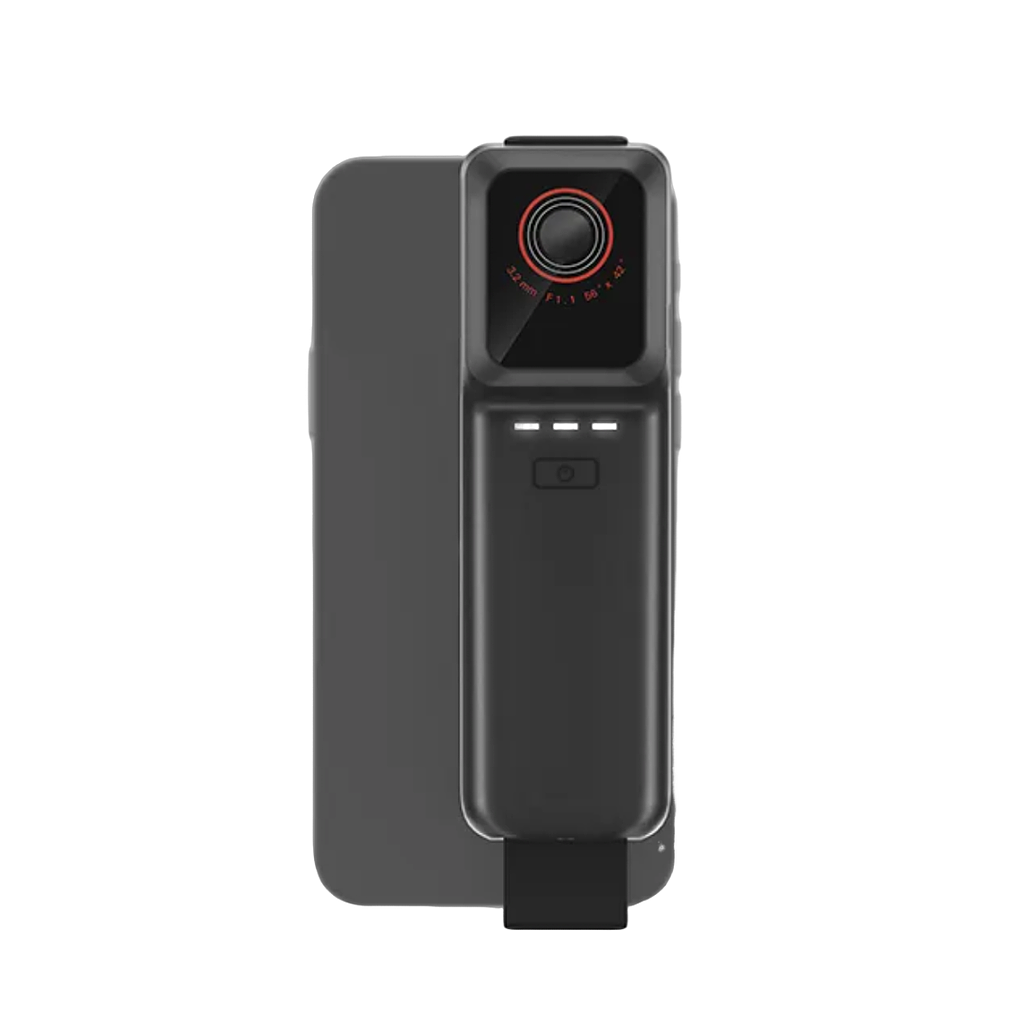

Raythink IX2 AIR SE Wireless Thermal Camera for Smart devices (7.5-14μm; -20°C ~550°C)

Thermal Imaging

Detector Type: 12μm uncooled infrared detector

Infrared Resolution: 256×192

Spectral Band: 7.5-14μm

Thermal Sensitivity (NETD): ＜40mK (25°C,F1.0)

Frame Rate: 25Hz

Lens Focal Length: 3.2mm

FOV: 56°×42°

Spatial Resolution (IFOV): 3.75mrad

Focusing Mode: Fixed focus

Minimum Imaging Distance: 0.3m

Measurement Range: -20°C~+150°C, 100°C~550°C

Measurement Accuracy: ±2ºC or ±2% of readings, whichever is greater

Imaging Display

Palettes: 7

Image Mode: Infrared

Temperature Width Stretch: Auto

Measurement and Analysis

App Analysis Function: Central temperature point/Highest temperature point/Lowest temperature point, 1 preset analysis template (support 3 custom points, 3 custom lines, and 3 custom frames)

System Functions

Communication Protocol: Wi-Fi, USB, Bluetooth

Remote Access and Control: Connection to smart devices via Wi-Fi, up to 8m away

Others

Battery: 1050mAh

Charging Mode: USB Type-C

Battery Life: About 2h

Tripod Socket: UNC 1/4-20 interface for tripod

Operating Temperature: -10°C~+50°C

Operating Humidity: 10%~90% (non-condensing)

Storage Temperature: -20°C~+60°C

Ingress Protection Rating: IP54

Shock and Vibration: Shock: 25g (IEC 60068-2-27); vibration: 2.5g (IEC60068-2-6)

Weight and Dimensions: About 132g, 135.6×41×29.1mm

Packing List: Thermal camera, USB cable
