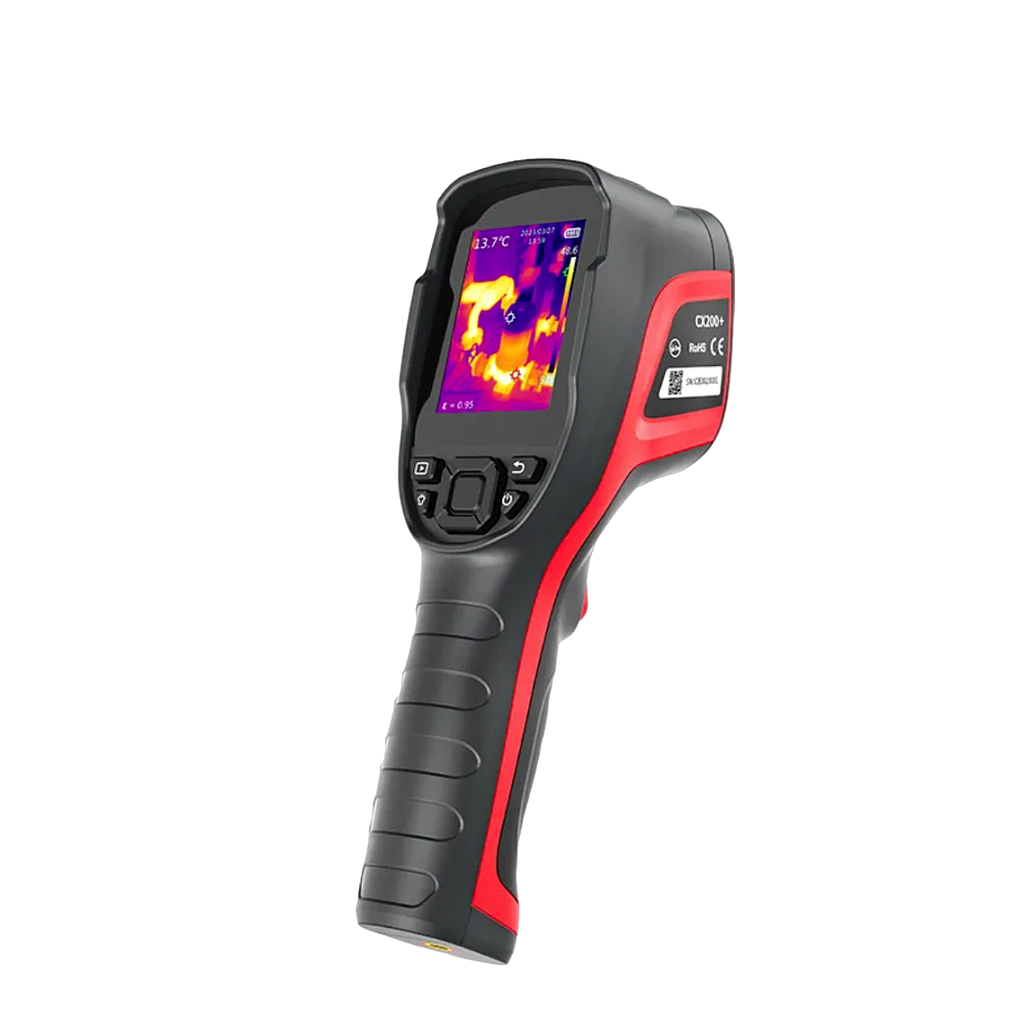

Raythink CX200+ Handheld Thermal Camera (7.5-14μm; -20°C ~ +550°C)

Detector Type: Uncooled infrared detector

Infrared Resolution: 256×192

Pixel Size: 12μm

Spectral Band: 7.5-14μm

Thermal Sensitivity (NETD): ＜40mK (25°C,F1.0)

Frame Rate: 25Hz

Lens Focal Length: 3.2mm

FOV: 56°×42°

Spatial Resolution (IFOV): 3.75mrad

Focusing Mode: Fixed focus

Minimum Imaging Distance: 0.3m

Measurement Range: -20°C ~ +150°C, 100°C ~ +550°C

Measurement Accuracy: ±2°C or ±2% of readings, whichever is greater

Imaging Display

Display: 2.8 inch, 320×240

Visible light camera: 2 megapixels

Digital Zoom: 1× 2× 4×

Palettes: 7

Image Mode: Infrared, visible light, PIP, dual-spectrum fusion

Temperature Width Stretch: Auto

Measurement and Analysis

Analysis Functions on the Device: Central temperature point/Highest temperature point/Lowest temperature point

Supporting Software: PC (Infrared Analysis Software)

Image Storage

Storage Medium: Standard 32GB MicroSD, up to 128G

System Functions

Alarm Type: Highest/Lowest temperature alarm in full frame; Image pop-ups, flash prompts; Auto image capture at alarm time (with temperature data).

Power Management: Auto shut-down setting

Others

Battery: Built-in rechargeable lithium-ion battery

Charging Mode: USB Type-C

Battery Life: About 11h

Interface: USB Type-C, SD card

Tripod Socket: UNC 1/4-20 interface for tripod

Operating Temperature: -10°C~+50°C

Operating Humidity: 10%~95% (non-condensing)

Storage Temperature: -20°C~+60°C

Ingress Protection Rating: IP54

Shock and Vibration

Shock: 25g (IEC 60068-2-27); vibration: 2.5g (IEC60068-2-6)

Weight and Dimensions: About 520g, 237×75×92mm

Packing List: Infrared camera×1, USB cable, 32GB SD card, user manual, storage bag
