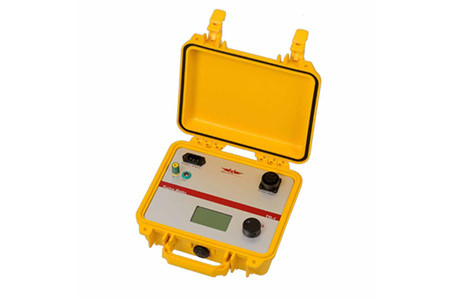

Raytech TR-1P Turns Ratio Meter 1 Phase

Specifications
- Size L: 270 mm (10.62”) W: 245 mm (9.68”) H: 125 mm (4.87”)
- Weight 3.2 kg (7 lbs.)
- Lithium Ion Battery 16.4V / 1.6Ah
- Input Power 85 to 264 VAC, 47 ... 63 Hz, 12 VDC (optional)
- Output Voltage PT Mode: 40 VAC, 10 VAC, 5 VAC, 1 VAC
- Output Voltage CT Mode: 1 ... 5 VAC autoranging
- Panel Display: LCD Graphic with back light
- Front Panel Sealed, Anodized with a multi-actuation rotary knob
- Interface RS232 serial (with optional interface adapter)
- Memory Storage Internally stores 50 test results
- Built in printer

Measurement Parameters
- Range/ Accuracy in PT Mode (40V)/ Accuracy in CT Mode (1...5V)/ Resolution
0.8 ... 100/ ±0.08% Rdg ±1 LSD/ ±0.08% Rdg ±1 LSD/ 5 Digits
101 ... 4000/ ±0.08% Rdg ±1 LSD/ -/ 5 Digits
- Current/ Accuracy/ Resolution
PT-Mode: 0 ... 0.1A/ ±1mA/ 0.1mA
CT-Mode: 0 ... 1A/ ±1mA/ 0.1mA
- Turns Ratio Range: 0.8 to 4'000
- Temperature
+ Operating -10ºC to +60°C
+ Storage -20°C to +70°C

Accessories:
- Carry Case
- H and X Lead 3m
- Power Cord
- 2 Paper Rolls
- Instruction Manual
- Toolbox Software for Data Exchange and Analysis
