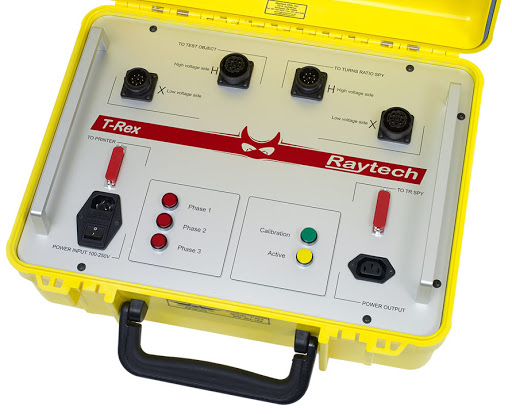

Raytech T-Rex 3 Phase Voltage Extension to Turns Ratio Meter

Specifications
- Size L: 470 mm (18.5”) W: 371 mm (14.6”) H: 190 mm (7.5”)
- Weight 7.8 kg (17.2 lbs.)
- Input Power 100 to 250 VAC, 50 / 60 Hz, automatic ranging
- Test Voltage 3 phase 24 VAC 50 / 60 Hz auto selecting
- Front Panel Sealed, Anodized
- Temperature Operating –10°C to +60°C, Storage –20°C to +70°C

Output Parameters
- Voltage 3 x 24 Vac
- Voltage Accuracy(between phases): ± 0.08%
- Phase Accuracy(between phases): 0.08 Degree
- Current: 0 ... 200mA
- Turns Ratio Range: 0.8 to 4'000
- Temperature
+ Operating -10ºC to +60°C
+ Storage -20°C to +70°C

Accessories:
- Power Jumper Cable
- H and X Leads 2 x 1m
- Interface cable connection to TR-MARK III
- Interface cable connection to TR-MARK II
- Instruction Manual
