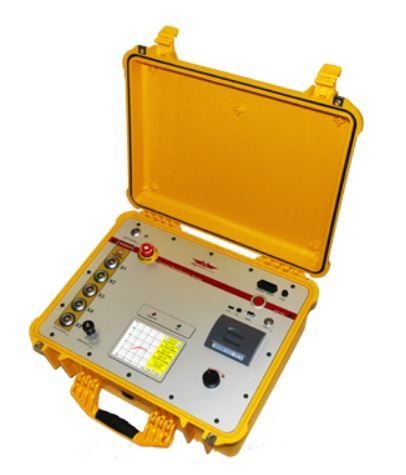

Raytech CT-T1 Current Transformer Tester

Specifications
- Size L: 521 mm (20.5”) W: 432 mm (17”) H: 216 mm (8.5”)
- Weight: 20 kg
- Input Power: 110 / 240 VAC, 50 / 60 Hz (auto ranging)
- Panel Display: 5.7” Color LCD with back light and touch screen, additional digipot
- Front Panel Sealed
- Interface: 2 USB 2.0 full speed (1 host, 1 device) and 9 Pin RS232 serial
- Memory Storage: Internally stores up to 2 000 test results
- Temperature: Operating –10°C to +60°C, Storage –20°C to +70°C

Measurement Parameters
- Ratio Range/ Accuracy/ Resolution
0.9 ... 5'000/ ± 0.05%/ 5 Digits
5001 ... 10'000/ ± 0.5%/ 5 Digits
10'001 ... 15'000/ ± 1%/ 5 Digits
- Voltage Range/ Accuracy/ Resolution
0 ... 2'000/ 1% Rdg ± 0.1V/ 0.01V
- Current/ Accuracy/ Resolution
0 ... 10A/ 1% Rdg ± 0.001A/ 0.1mA
- Voltage Range: 0 to 2'000V
- Current Range: 0 to 10A
- Ratio Range: 0.1 to 15'000

Accessories:
- Cable Bag
- Measuring Cableset H 5m
- Measuring Cableset X1-X5 5m
- Safety-GND Cable 1 x 10m
- Surveillance Cable 1 x 2m
- Power Cord depending on country of distribution
- 2 Paper Rolls
- USB memory stick
- Instruction Manual
