Metrological parameters
-Maximum capacity [Max]: 110 g
-Minimum load: 1mg
-Readability [d]: 0.01mg
-Verification unit [e]: 1mg
-Tare range: -110g
-Standard repeatability [5% Max]: 0.005 mg
-Standard repeatability [Max]: 0.02 mg
-Standard minimum weight (USP): 10 mg
-Standard minimum weight (U=1%, k=2): 1 mg
-Permissible repeatability [5% Max]: 0.012 mg
-Permissible repeatability [Max]: 0.03 mg
-Linearity: ±0.06 mg
-Eccentric load deviation: 0.06 mg
-Sensitivity time drift: 1×10⁻⁶/Year×Rt
-Stabilization time: 4s
-Adjustment: internal (automatic)
-OIML Class: I
Physical parameters
-Leveling system: semi-automatic - LevelSENSING
-Display: 10″ graphic colour touchscreen
- Weighing chamber doors: manual

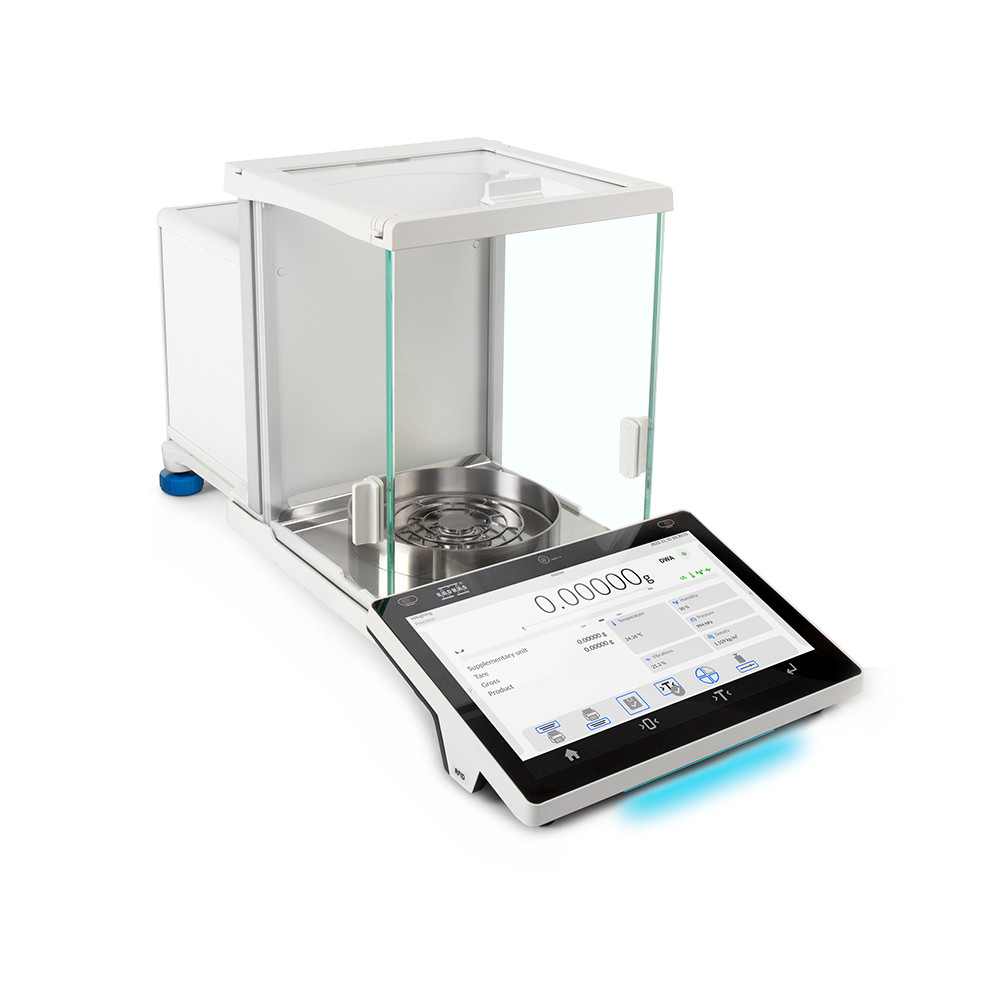

- Delivery components: Analytical Balance, weighing pan, weighing pan shield, centring ring, brush, fabric dust cover, power supply.
-Weighing pan dimensions: ø90 open-work pan + ø85 (option) mm
- Weighing chamber dimensions: 168×160×228 mm
- Net weight: 9.8 kg
- Gross weight: 14.3 kg
- Protection class: IP 43
Communication interface
-Communication interface: 2×USB-A, USB-C, HDMI, Ethernet, Wi-Fi®, Hotspot
-Electrical parameters: Power supply
- Adapter: 100 – 240V AC 50/60Hz 1A; 15V DC 2.4A
- Balance: 12 – 15V DC 1.6A max*
Environmental conditions
-Operating temperature: +10 — +40 °C
-Operating temperature change rate: ±0.3°C/1h (±1°C/8h)
- Relative humidity: 40% — 80%
- Relative humidity change rate: ±1%/h (±4%/8h)
