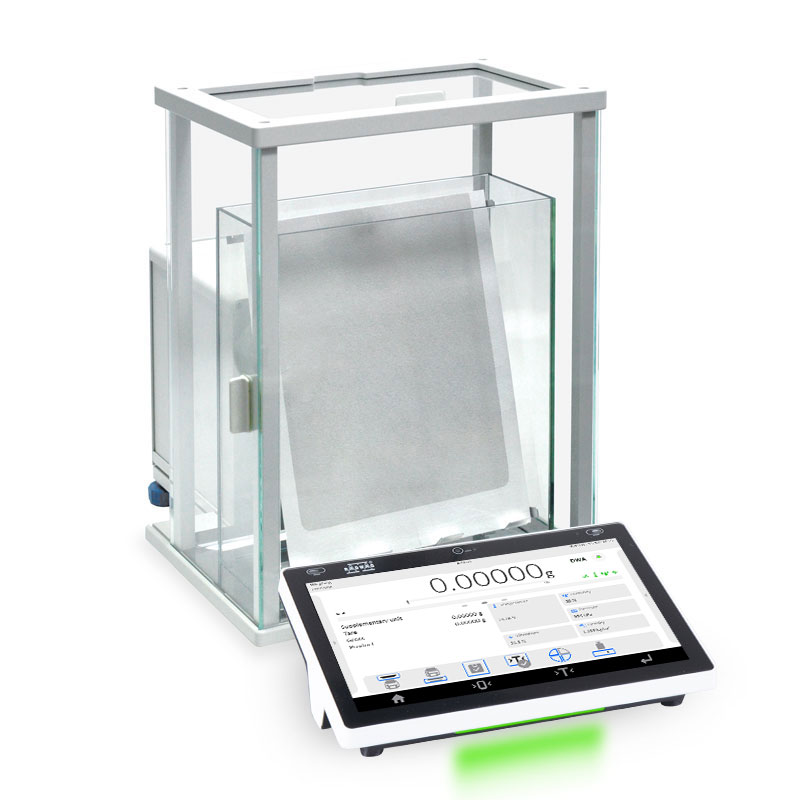

RADWAG XA 110.5Y.F Analytical Balance (110g, 0.01 mg)

Metrological parameters

-Maximum capacity [Max]: 110g

-Minimum load: 1mg

-Readability [d]: 0.01 mg

-Verification unit [e]: 1mg

-Tare range: -110 g

-Standard repeatability [5% Max]: 0.007 mg

-Standard repeatability [Max]: 0.02 mg

-Standard minimum weight (USP): 14 mg

-Standard minimum weight (U=1%, k=2): 1.4 mg

-Permissible repeatability [5% Max]: 0.01 mg

-Permissible repeatability [Max]: 0.03 mg

-Linearity: ±0.06mg

- Eccentric load deviation: 0.06mg

-Stabilization time: 5 s (30 s for filters)

-Adjustment: internal (automatic)

-OIML Class: -

Physical parameters

-Leveling system: semi-automatic - LevelSENSING

-Display: 10″ graphic colour touchscreen

-Weighing chamber door: manual

-Delivery components: Analytical Balance, weighing pan, weighing pan for filters, weighing pan shield, centring ring, bottom cover, brush, fabric dust cover, power supply.

-Weighing pan dimensions: 210×254 mm for filters + ø90 mm open-work pan + ø85 mm standard pan (option) - Net weight: 12.7 kg

- Gross weight: 25 kg

- Protection class: IP 43

Communication interface

-Communication interface: 2×USB-A, USB-C, HDMI, Ethernet, Wi-Fi®, Hotspot

-Electrical parameters: Power supply

Adapter: 100 – 240V AC 50/60Hz 0.6A; 15V DC 2.4A

Balance: 12 – 15V DC 1.1A max

Operating temperature: +10 — +50 °C
