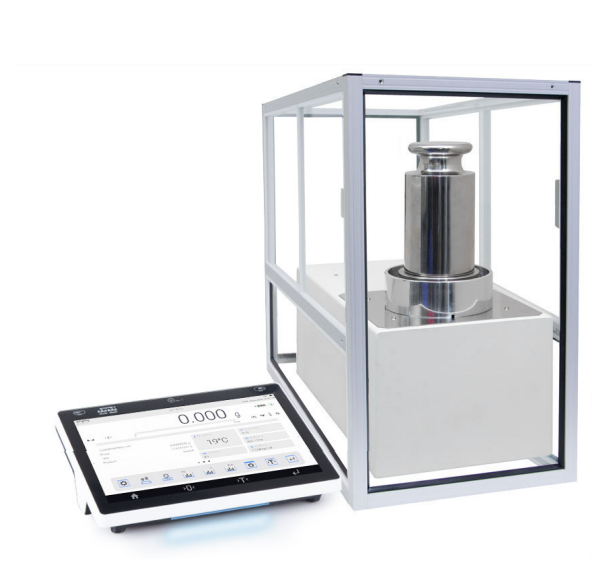

RADWAG WAY 5100.5Y.KO Mass Comparator (5100 g; 1 mg)

Metrological parameters:

E1 Calibration Range : -

E2 Calibration Range : 5 kg

F1 Calibration Range: 1 – 5 kg

F2 Calibration Range : 500 g – 5 kg

M1 Calibration Range: 200 g – 5 kg

M2 Calibration Range : 10 g – 5 kg

Maximum capacity [Max] : 5100 g

Readability [d]: 1 mg

Standard repeatability [5% Max] : 0.8 mg

Standard repeatability [Max] : 1 mg

Permissible repeatability : 2 mg

Eccentricity (tested load): 1d / 5 mm

Electric compensation range -: 0 – +5100 g

Stabilization time : 10 s

Adjustment: internal

Physical parameters:

Display : 10″ graphic colour touchscreen

Weighing pan dimensions : ø100 mm

Weighing device dimensions : 385×195×210 mm

Controling device dimensions : 249×170×72 mm

Anti-draft chamber dimensions : 560×340×455 mm

Packaging dimensions : 945×820×1260 mm

Net weight : 16 kg

Gross weight : 24.5 kg

Communication interface:

Communication interface : 2×USB-A, USB-C, HDMI, Ethernet, Wi-Fi,Hotspot

Environmental conditions:

Operating temperature : +15 – +30 °C

Operating temperature change rate: ±0.5 °C / 12 h (±0.3 °C / 4 h)

Relative humidity : 40% – 60%

Relative humidity change rate : ±3% / 4 h
