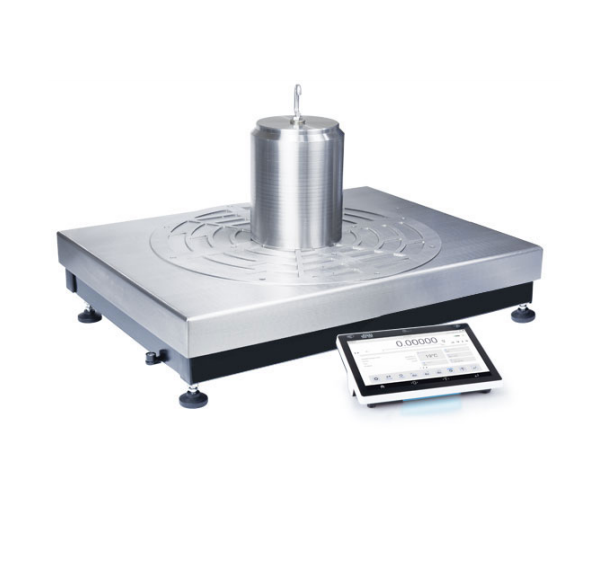

RADWAG HRP 500.5Y.KO Mass Comparator (510 kg; 0.5g)

Metrological parameters:

E1 Calibration Range : -

E2 Calibration Range : -

F1 Calibration Range : -

F2 Calibration Range : 500 kg

M1 Calibration Range: 100 – 500 kg

M2 Calibration Range : 50 – 500 kg

Maximum capacity [Max] : 510 kg

Readability [d]: 0.5 g

Standard repeatability [5% Max] : 0.6 g

Standard repeatability [Max] : 1.5 g

Permissible repeatability : 3 g

Eccentric load deviation : 0 – weighing pan self centering

Eccentricity (tested load): 2d / 1 mm

Electric compensation range : 0 – 510 kg

Stabilization time : 10 s

Adjustment: external

Physical parameters:

Display : 10″ graphic colour touchscreen

Weighing pan dimensions : 800×600 mm

Self-centering weighing pan dimensions: 600×600 (extra charge) mm

Weighing unit dimensions with self-centering weighing pan : 810×600×260 mm

Controling device dimensions : 249×170×72 mm

Comparator packaging dimensions without selfcentering weighing pan: 988×800×310 mm

Comparator packaging dimensions with self-centering weighing pan: 988×800×355 mm

Packaging dimensions : —

Net weight : 13.5 kg

Gross weight : 166.5 kg

Communication interface:

Communication interface 2×USB-A, USB-C, HDMI, Ethernet,Wi-Fi, Hotspot: 2×USB-A, USB-C, HDMI, Ethernet,Wi-Fi, Hotspot

Environmental conditions:

Operating temperature : +15 – +30 °C

Operating temperature change rate : ±1 °C / 12 h

Relative humidity : 40% – 60%

Relative humidity change rate : ±5% / 4 h
