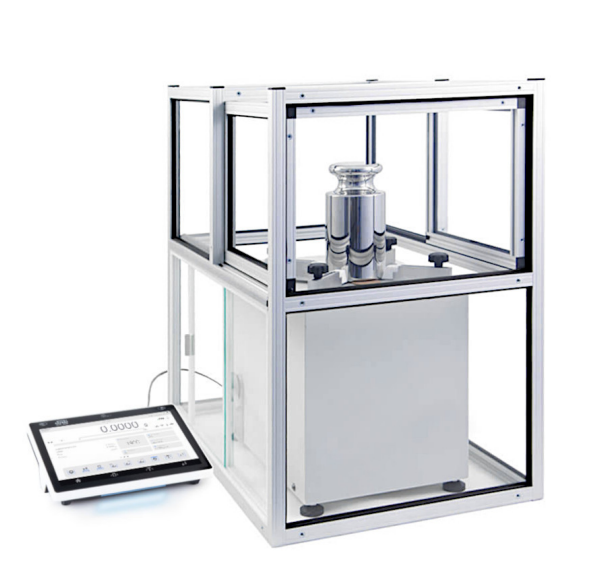

RADWAG APP 10.5Y.KO Mass Comparator (10.2 kg ; 0.1 mg)

E1 Calibration Range: 5 – 10 kg

E2 Calibration Range : 1 – 10 kg

F1 Calibration Range: 500 g – 10 kg

F2 Calibration Range : 100 g – 10 kg

M1 Calibration Range: 100 g – 10 kg

M2 Calibration Range : 100 g – 10 kg

Maximum capacity [Max] : 10.2 kg

Readability [d]: 0.1 mg

Standard repeatability [5% Max]: 0.35 mg

Standard repeatability [Max] : 0.4 mg

Permissible repeatability : 0.7 mg

Eccentricity (tested load) : 2d / 1 mm

Electric compensation range : -100 g – +200 g

Stabilization time : 30 s

Adjustment : external

Physical parameters:

Display : 10″ graphic colour touchscreen

Weighing pan dimensions : ø190 (ø300) mm

Weighing device dimensions : 455×300×380 mm

Controling device dimensions: 249×170×72 mm

Anti-draft chamber dimensions: —

Packaging dimensions: 1160×650×700 mm

Net weight : 46 kg

Gross weight : 60 kg

Communication interface:

Communication interface : 2×USB-A, USB-C, HDMI, Ethernet, Wi-Fi,Hotspot

Environmental conditions:

Operating temperature : +15 – +30 °C

Operating temperature change rate : ±0.5 °C / 12 h (±0.3 °C / 1 h)

Relative humidity : 40% – 60%

Relative humidity change rate: ±5% / 4 h

Datasheet
