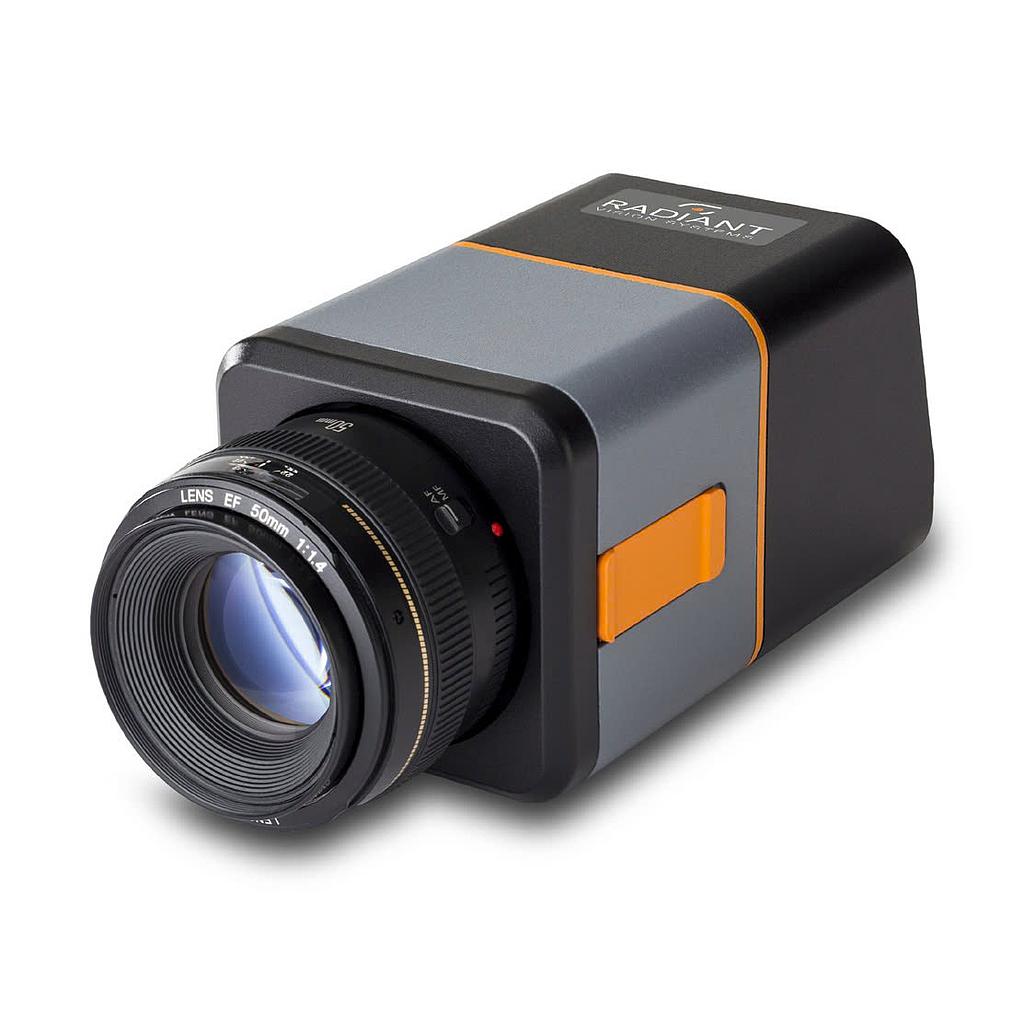

Radiant ProMetric Y16-G ProMetric Y Imaging Photometers (5312 x 3032; 16.1)

Primary Application: Production, Display Testing, Pixel-level Measurement, Advanced Vision

Sensor Pixel Resolution: 5312 x 3032

Sensor Megapixels: 16.1

Sensor Type: CMOS

System Dynamic Range (single exposure, per pixel): 70 dB (1 x 1 binning)

Luminance (Minimum)*: 0.0005 cd/m² Limit of Detection/ 0.0010 cd/m² @ SNR = 60/ 0.0015 cd/m² @ SNR = 100

Luminance (Maximum): 10¹⁰ cd/m² with optional ND filters

System Accuracy**: Illuminance ± 3%; Luminance (Y) ± 3%

Short-term Repeatability: Illuminance ± 0.03%; Luminance (Y) ± 0.03%

Lens Type: Electronically controlled focus and aperture

Focal Distances Available: 35, 50, 100 mm

Field of View (Full Angle, H x V degrees): 35 mm 24° x 14°; 50 mm 17° x 10°; 100 mm macro 8° x 5°

Minimum Measurement Time***: 0.5 sec

Spatial Measurement Capabilities: Luminance, Radiance, Illuminance, Irradiance, Luminous Intensity, Radiant Intensity

Units: foot-lambert, cd/m2, nit, W/sr/m2, foot-candles, lux, lux-s, W/m2, W-s/m2, candela, W/sr

Communication Interface: Ethernet 1000

Power: External AC / DC adapter, 100-240 V, 50-60 Hz, 60 Watts

Dimensions (H x W x D): 86 mm x 86 mm x 170 mm

Weight: 1.1 kg

Operating Temperature: 5-35° C

Operating Humidity: 20 - 70% non-condensing
