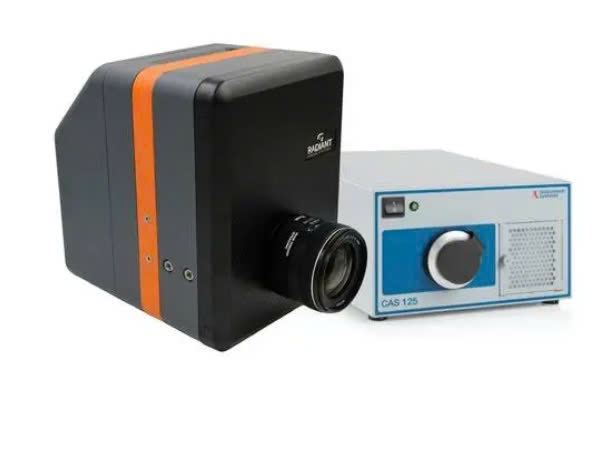

Radiant ProMetric I16-G-SC Imaging Colorimeter & Integrated Spectrometer (0.02 cd/m², 5312 x 3032, 16.1 MP)

Spectrometer Specifications

Luminance Minimum: 0.02 cd/m²

Spectroradiometer Absolute Accuracy: Color Coordinates (x,y) ± 0.002 for CIE standard illuminant A

Short-term Repeatability: ± 0.35% (2 sigma)

Minimum Measurement Time: 200 ms

Measurement Spot Size: Corresponding to ~790 I16-G imaging colorimeter sensor pixels (in diameter)

Communication Interface: Ethernet 100/1000

Power supply: Wide-range input 100 - 240 VAC 50/60 Hz

Dimensions (H x W x D): 136.5 mm x 3233 mm x 325 mm

Weight: 6.6 kg

Imaging System Specifications

Sensor Pixel Resolution:5312 x 3032

Sensor Megapixels: 16.1

Sensor Type: CMOS

System Dynamic Range(single exposure, per pixel): 70 dB (1 x 1 binning)

Luminance (Minimum)*: 0.0005 cd/m² Limit of Detection

0.002 cd/m² @ SNR = 60

0.003 cd/m² @ SNR = 100

Luminance (Maximum): 10¹⁰ cd/m² with optional ND filters

Field of View (Full Angle, H x V degrees): 24 mm 33° x 19°

35 mm 24° x 14°

50 mm 17° x 10°

100 mm macro 8° x 5°

Minimum Measurement Time***: 0.5 sec - photopic/ 1.4 sec - color

Communication Interface: 10 Gigabit Ethernet (10 GigE)
