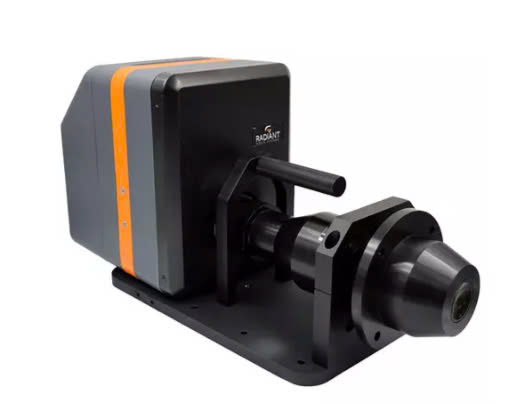

Radiant FPD FPD Lens (3 mm; 0.03°)

pplication: View angle measurement

Working Distance: 3 mm

Minimum Sampling Area(uniform emission): 15 mm diameter

View Angle: ± 70°

Resolution: 0.05°/sensor pixel(29MP); 0.03°/sensor pixe(45MP); 0.03°/sensor pixel (61MP)

Luminance - Minimum: 0.01 cd/m²

Luminance - Maximum: 3,000 cd/m² (Y-series); 30,000 cd/m² (I-series*)

System Accuracy: 0-60° Inclination, Luminance (Y) ± 4%, Color Coordinates (x,y) ± 0.004; 60-70° Inclination, Luminance (Y) ± 5%, Color Coordinates (x,y) ± 0.007

Measurement Capabilities: Luminance, Radiance, Angular Contrast, CIE Chromaticity Coordinates, Correlated Color Temperature (CCT)

Units: cd/m²,nit, W/sr/m²,foot-lambert, CIE (x, y) and (u’, v’), Kelvin (CCT)
