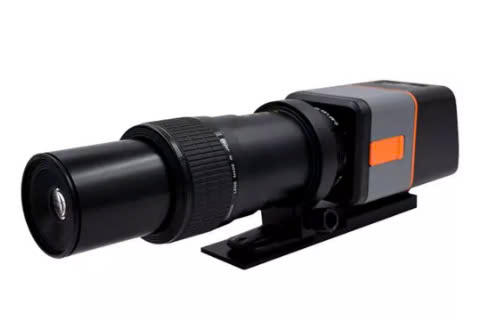

Radiant 10X Microscope Lens (3.4 x 2.2 mm; 0.37 µm / sensor pixel)

Primary Application: High-resolution measurement of small display & component features

Working Distance to Front of Lens: 40 mm

Approx. Field of View (by camera sensor size):

2MP: 0.8 x 0.6 mm

8MP: 1.8 x 1.4 mm

29MP: 3.4 x 2.2 mm

45MP: 2.6 x 1.7 mm

61MP: 3.4 x 2.2 mm

Spatial Resolution(by camera sensor size):

Up to 29MP: 0.55 µm / sensor pixel

45MP: 0.32 µm / sensor pixel

61MP: 0.37 µm / sensor pixel

Approx. Effective F-Stop: F/40

Measurement Capabilitie: Luminance, Radiance, Luminous Intensity, Radiant Intensity, Power, Radiant Flux, CIE Chromaticity Coordinates, Correlated Color Temperature (CCT)

Units:foot-lambert, cd/m², nit, W/sr/m²,foot-candles, candela, W/sr, CIE (x, y) and (u’, v’),Kelvin (CCT)
