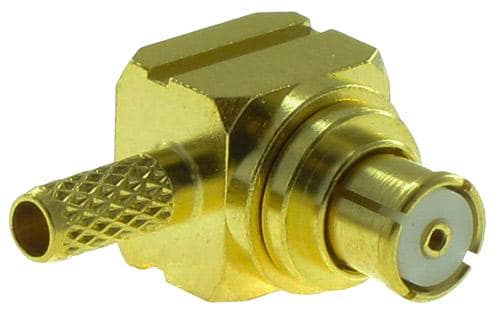

Radiall R222M80500W Connectors SMP-MAX/R/A FML PLG CRM CBL 2.6/50S

Gender: Plug (Socket)

Polarity: Reverse

Impedance: 50 Ohms

RF Series: RP-SMP-Max

Body Style: Right Angle

Cable Type: RG-174, 316, ECO 316, KX22A

Body Finish: Nickel Phosphorous Gold Radiall

Orientation: Right Angle

Unit Weight: 6 g

REACH - SVHC: Details

Body Material: Brass

Mounting Style: Cable Mount / Free Hanging

Voltage Rating: 335 V

Contact Plating: Gold

Contact Material: Beryllium Copper

Maximum Frequency: 6 GHz

Termination Style: Crimp

Insulation Resistance: 5 GOhms

Maximum Operating Temperature: + 165 C

Minimum Operating Temperature: - 55 C
