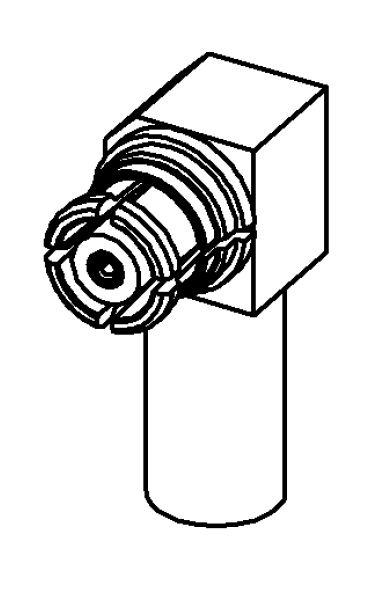

Radiall R222900310 Connectors SMP / RIGHT ANGLE PLUG CRIMP TYPE CABLE 2/50 S

Gender: Plug (Socket)

Polarity: Reverse

Impedance: 50 Ohms

RF Series: RP-SMP

Body Style: Right Angle

Cable Type: RG-178, 196, KX21

Body Finish: Nickel Phosphorous Gold Radiall

Orientation: Right Angle

Unit Weight: 1.510 g

REACH - SVHC: Details

Body Material: Brass

Mating Cycles: 100

Mounting Style: Cable Mount / Free Hanging

Voltage Rating: 250 V

Contact Plating: Gold

Contact Material: Beryllium Copper

Maximum Frequency: 12.4 GHz

Termination Style: Crimp

Insulation Resistance: 5 GOhms

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 55 C
