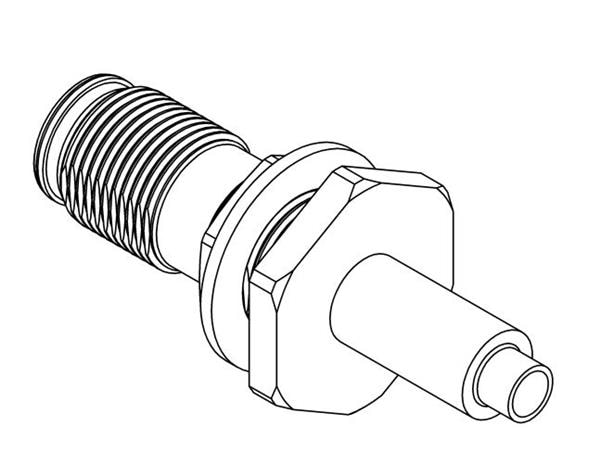

Radiall R180303016 Connectors STRAIGHT BULKHEAD JACK PANEL S

Gender: Jack (Socket)

Polarity: Standard

IP Rating: IP67

Impedance: 50 Ohms

RF Series: NEX10

Body Style: Bulkhead

Cable Type: RD-316, K02252D, KX22A

Orientation: Straight

Contact Type: Socket

Body Material: Brass

Mating Cycles: 100 Cycles

Insertion Loss: 0.05 dB

Mounting Style: Cable Mount / Free Hanging

Voltage Rating: 500 V

Contact Plating: Silver

Contact Material: Beryllium Copper

Maximum Frequency: 20 GHz

Termination Style: Crimp

Coupling Mechanism: Push Pull

Contact Termination: Crimp

Insulation Resistance: 5 GOhms

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 55 C
